1 ROPE HOIST PRODUCT CODE
1.1 Spacemaster® SX Wire Rope Hoist
1.2 Spacemaster® SXR Wire Rope Hoist
1.3 Spacemaster® SXL Wire Rope Hoist
1.4 Spacemaster® EX Wire Rope Hoist (Hazardous location)
2 END TRUCK PRODUCT CODE
2.1 RSN Top-running End Truck
2.2 RT Top-running End Truck

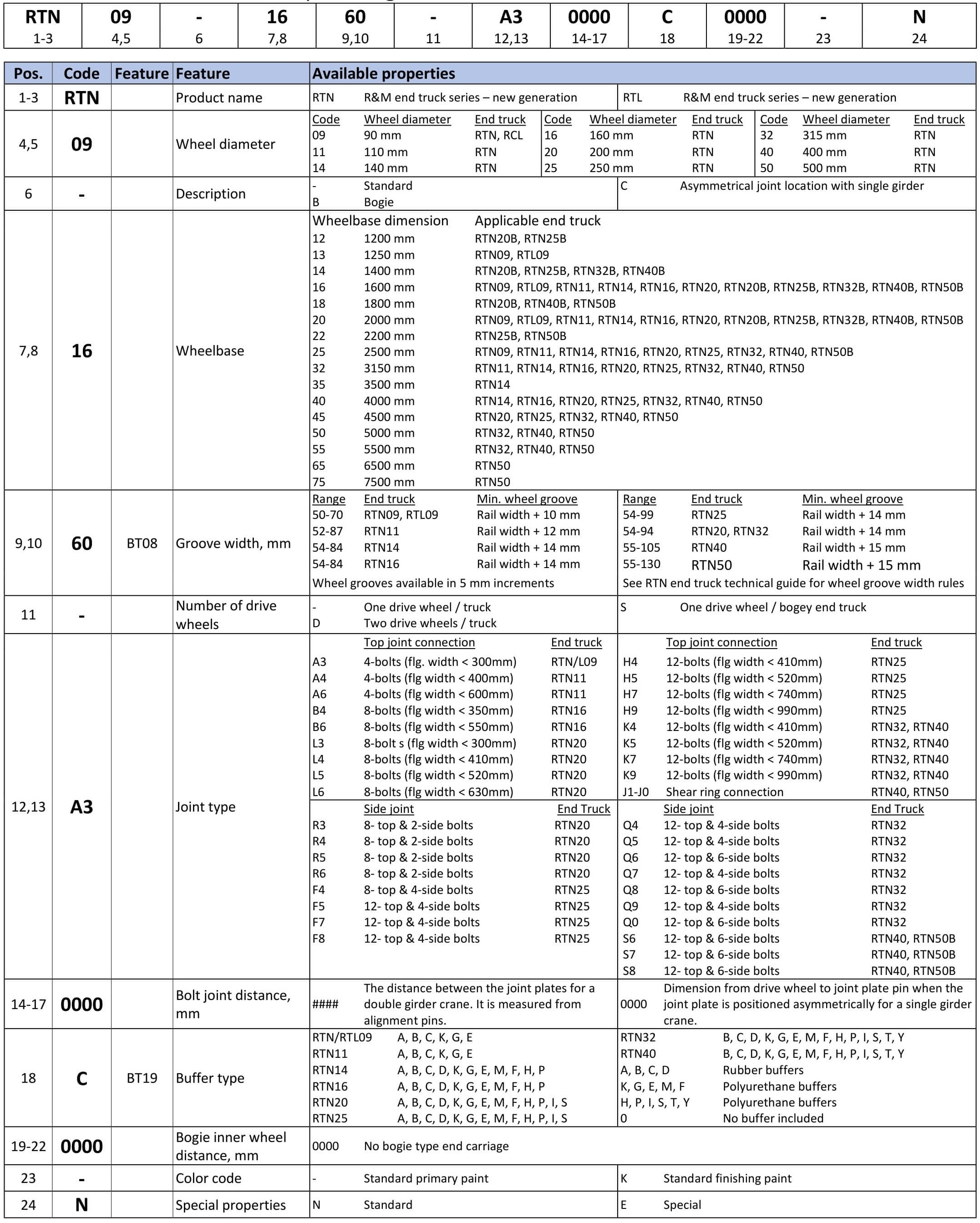

2.3 RTN and RTL Top-running End Truck

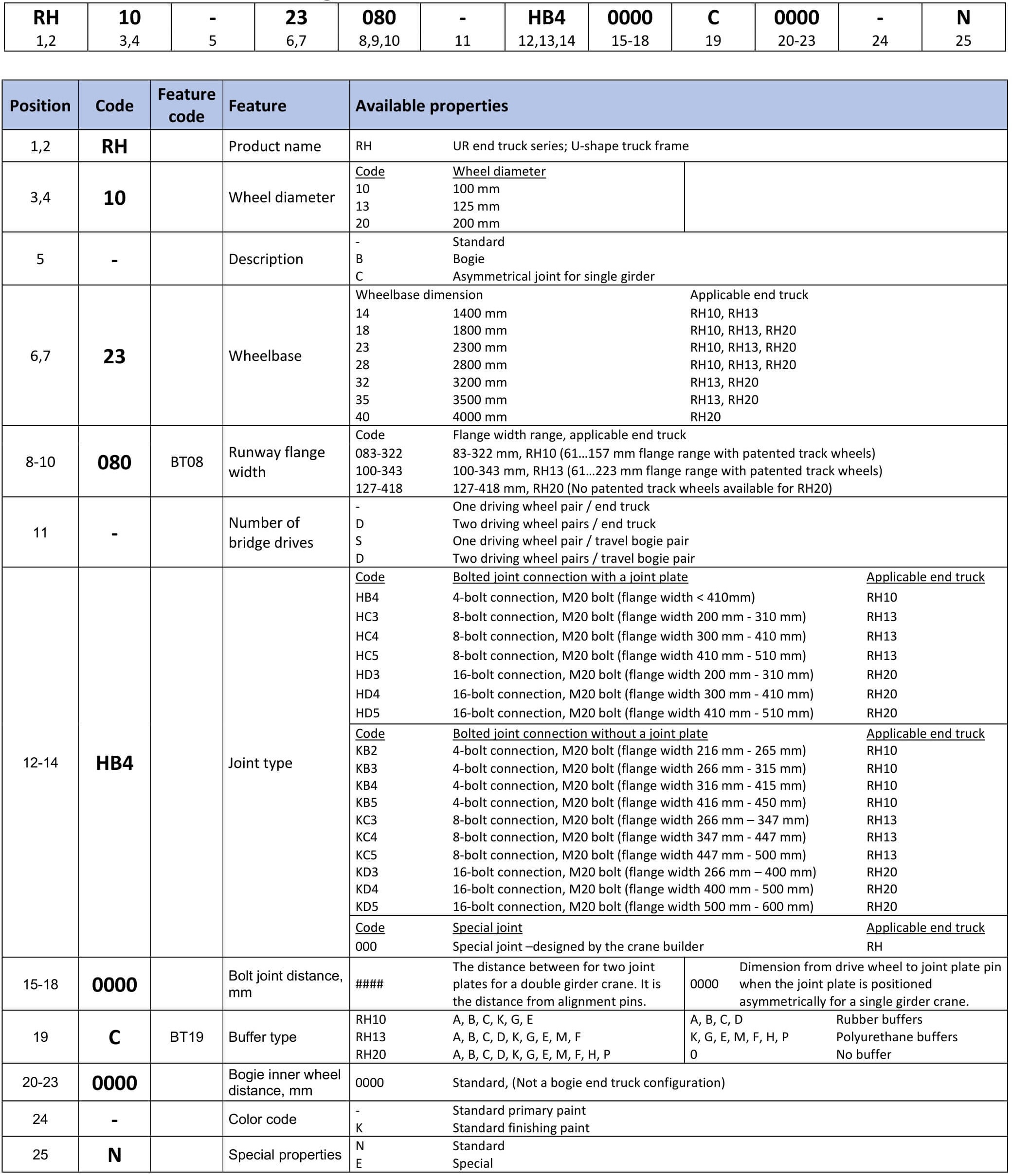

2.4 RU and RH Under-running End Truck
3 TRAVELING MACHINERIES PRODUCT CODE

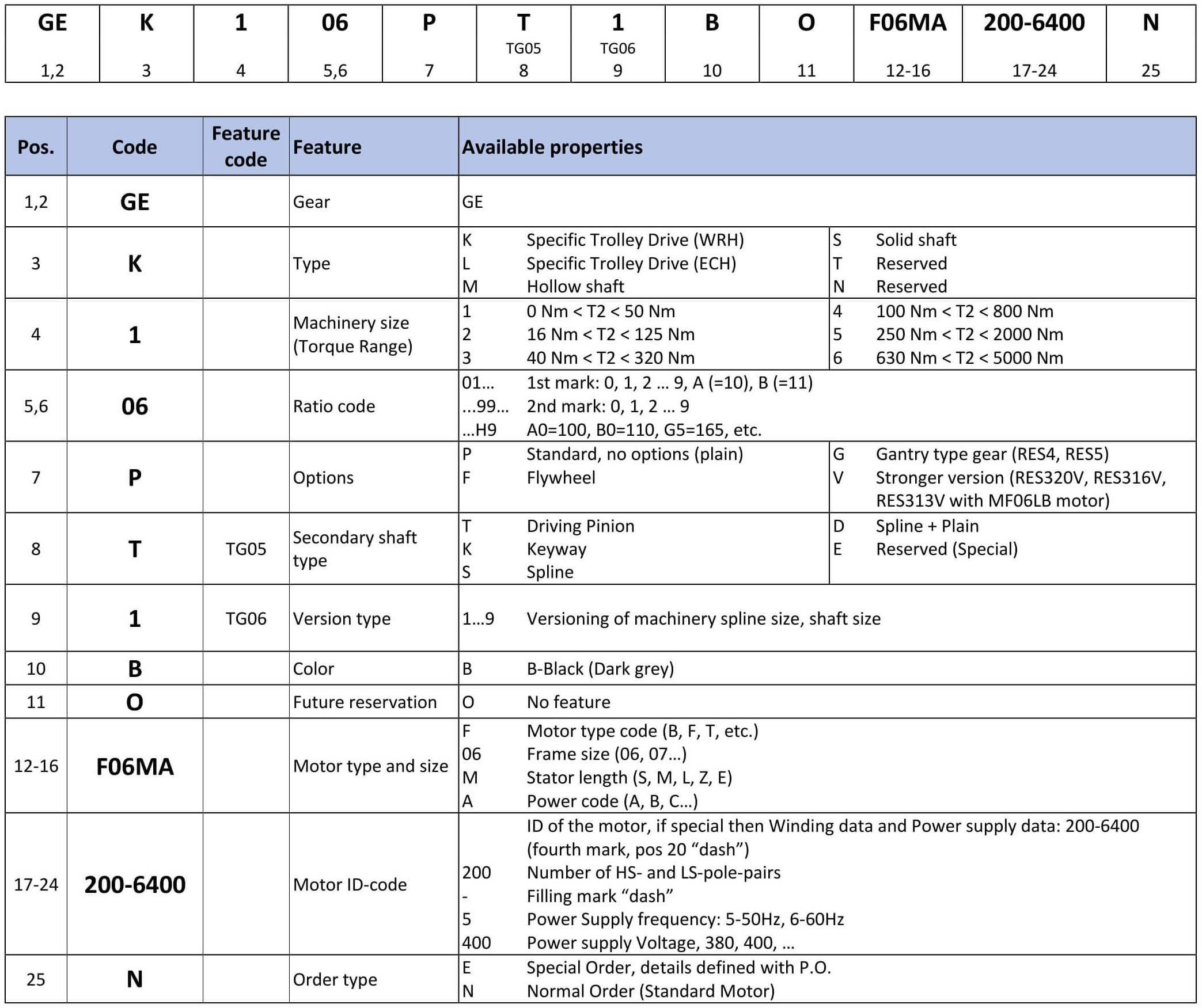

3.1 GE Drive
3.2 QM Bridge Drive
4 POWER SUPPLY PACKAGE PRODUCT CODE

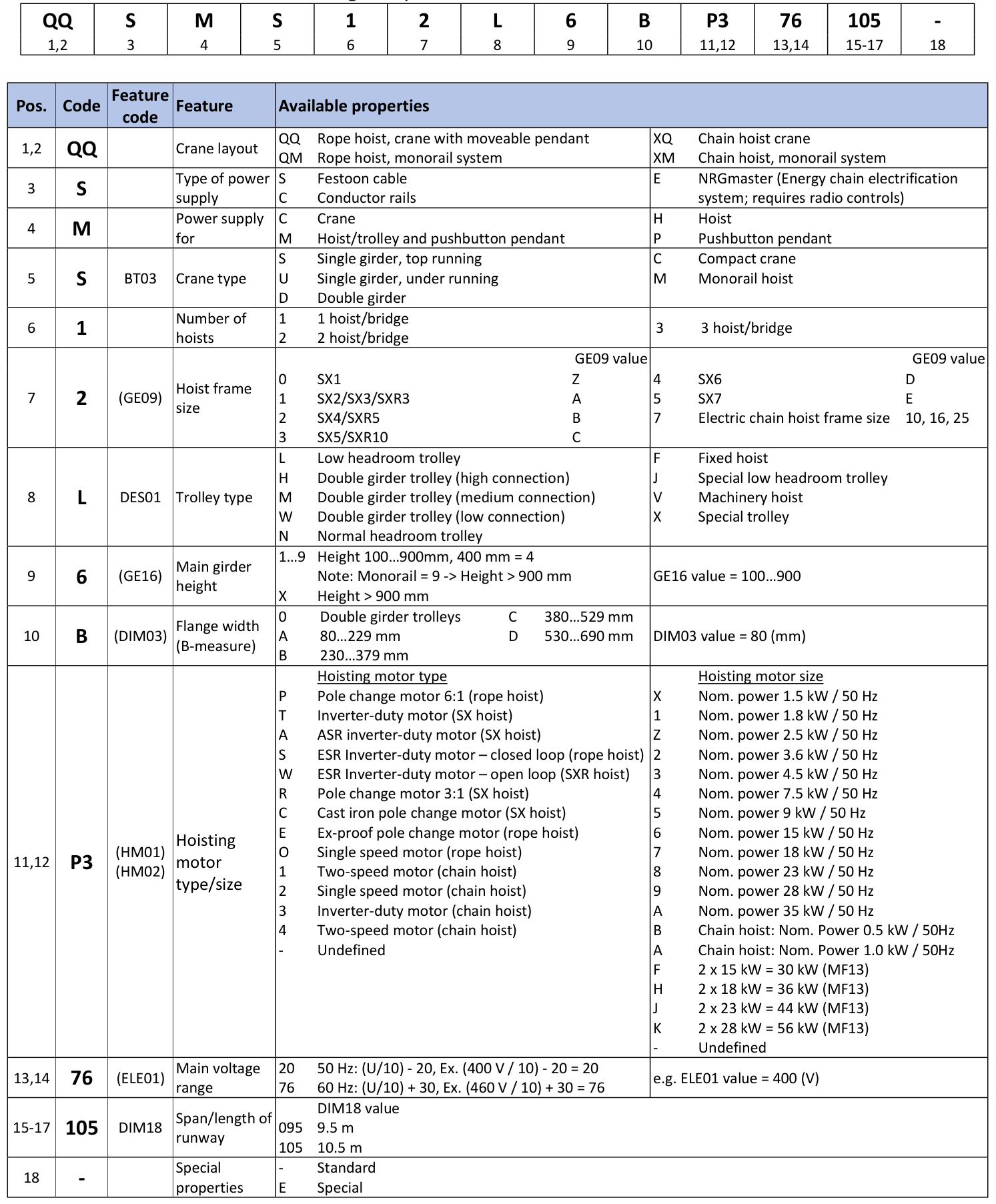

4.1 Electrification Package – Spacemaster® SX WRH and LK ECH

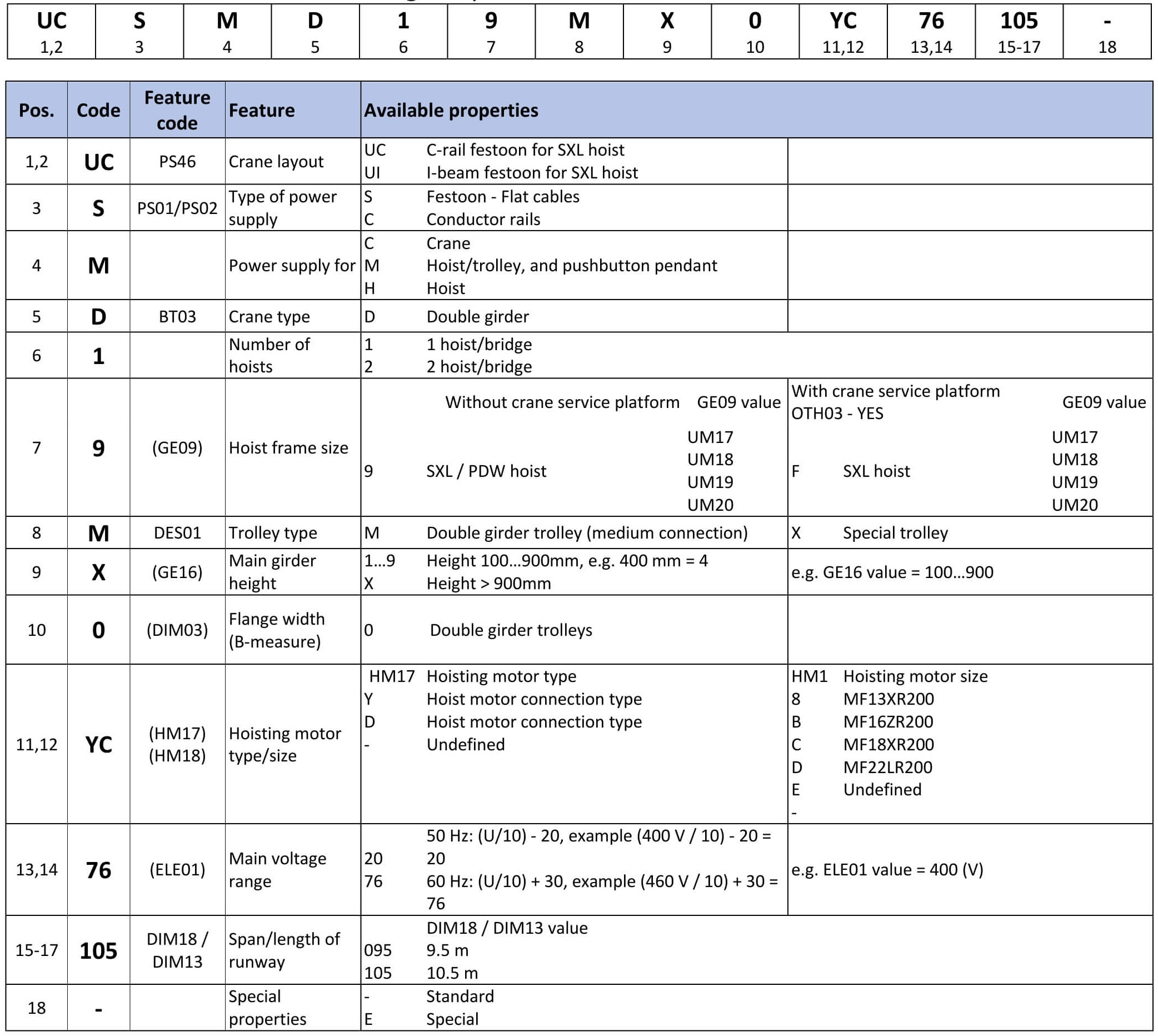

4.2 Electrification Package – Spacemaster® SXL WRH
5 CONTROL PANEL PRODUCT CODE

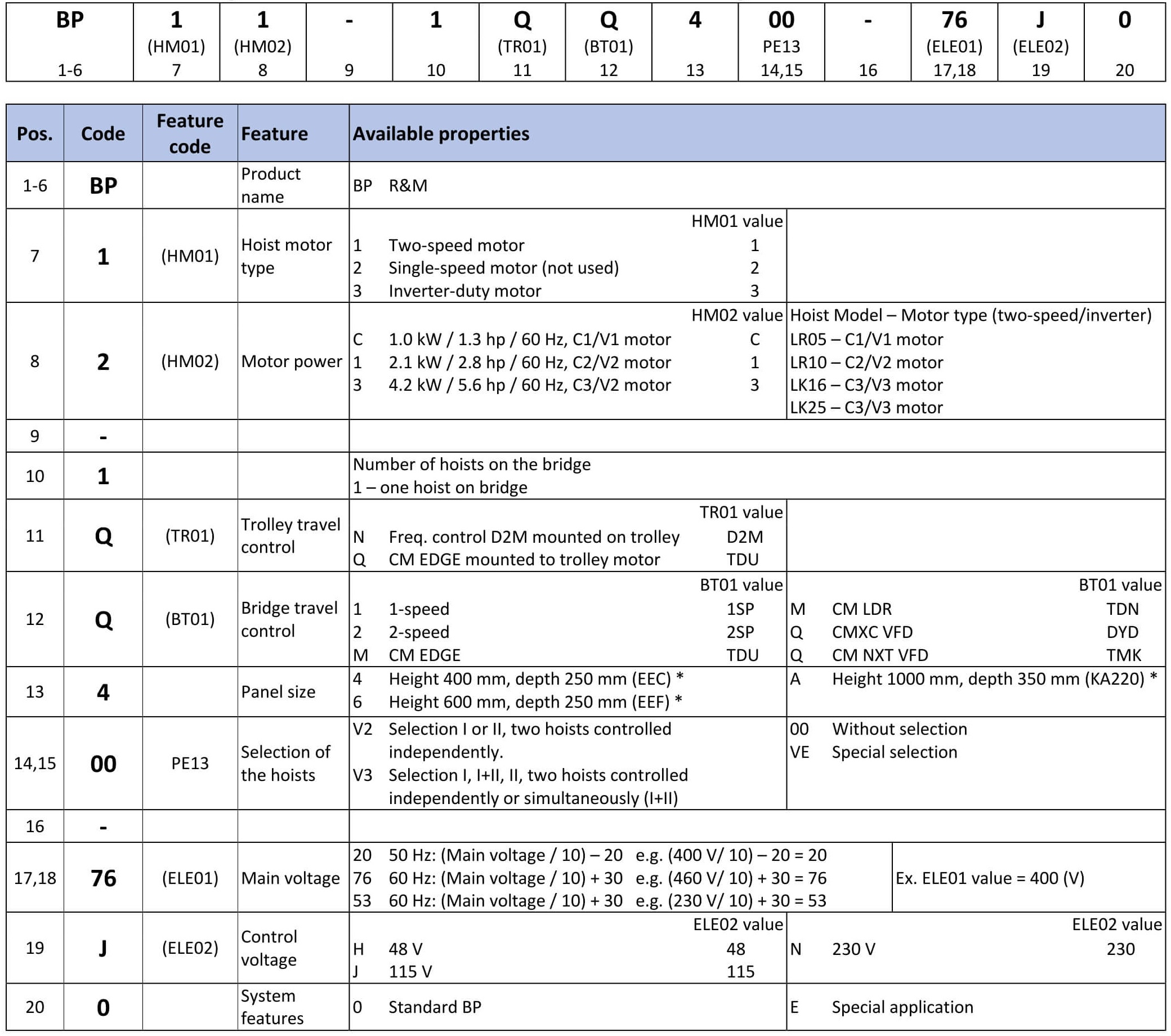

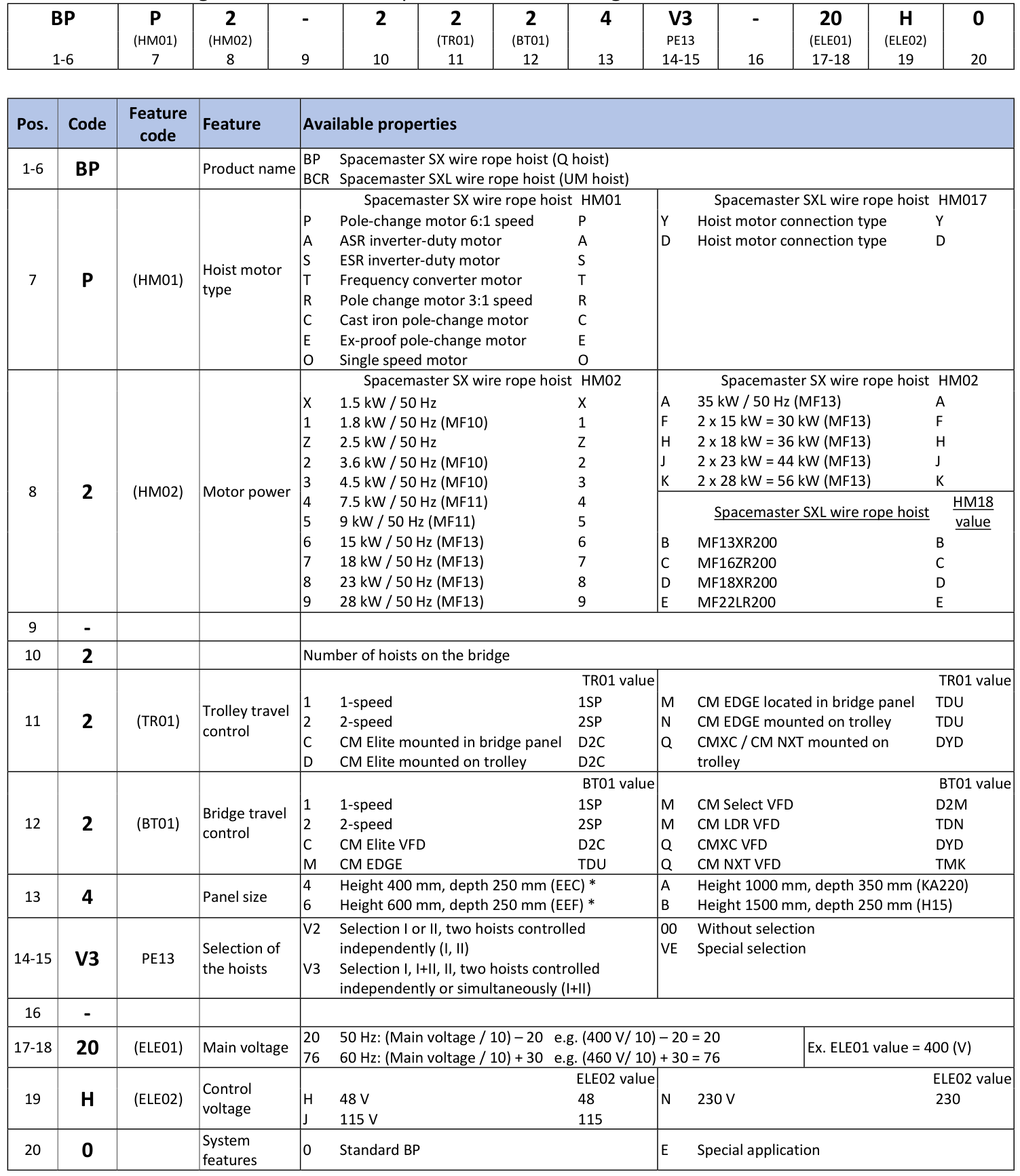

5.1 Bridge Panel for Wire Rope Hoist Crane Package
5.2 Bridge Panel for Electric Chain Hoist Crane Package
6 CONTROL SYSTEM PRODUCT CODE

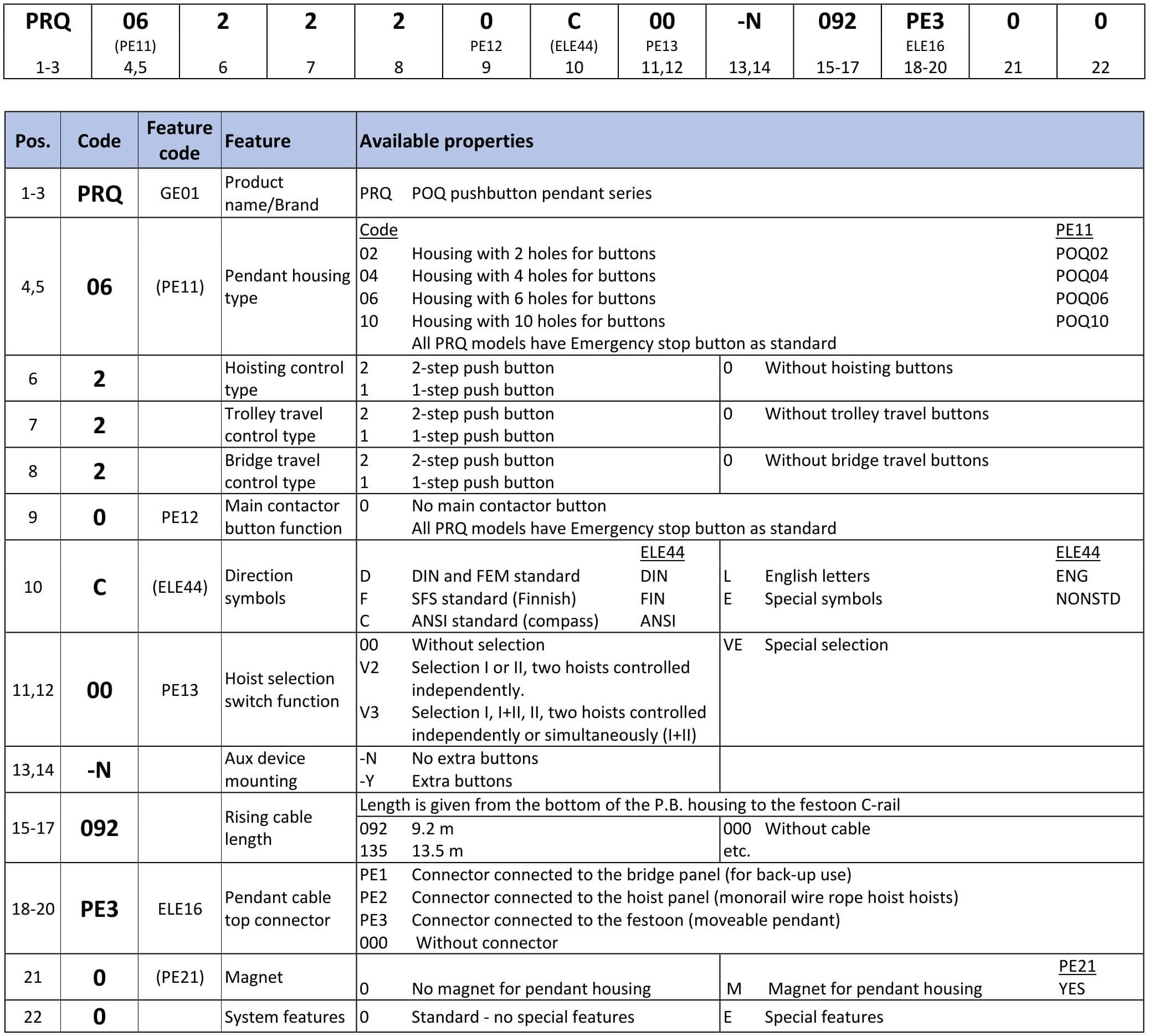

6.1 PRQ Push Button Pendant

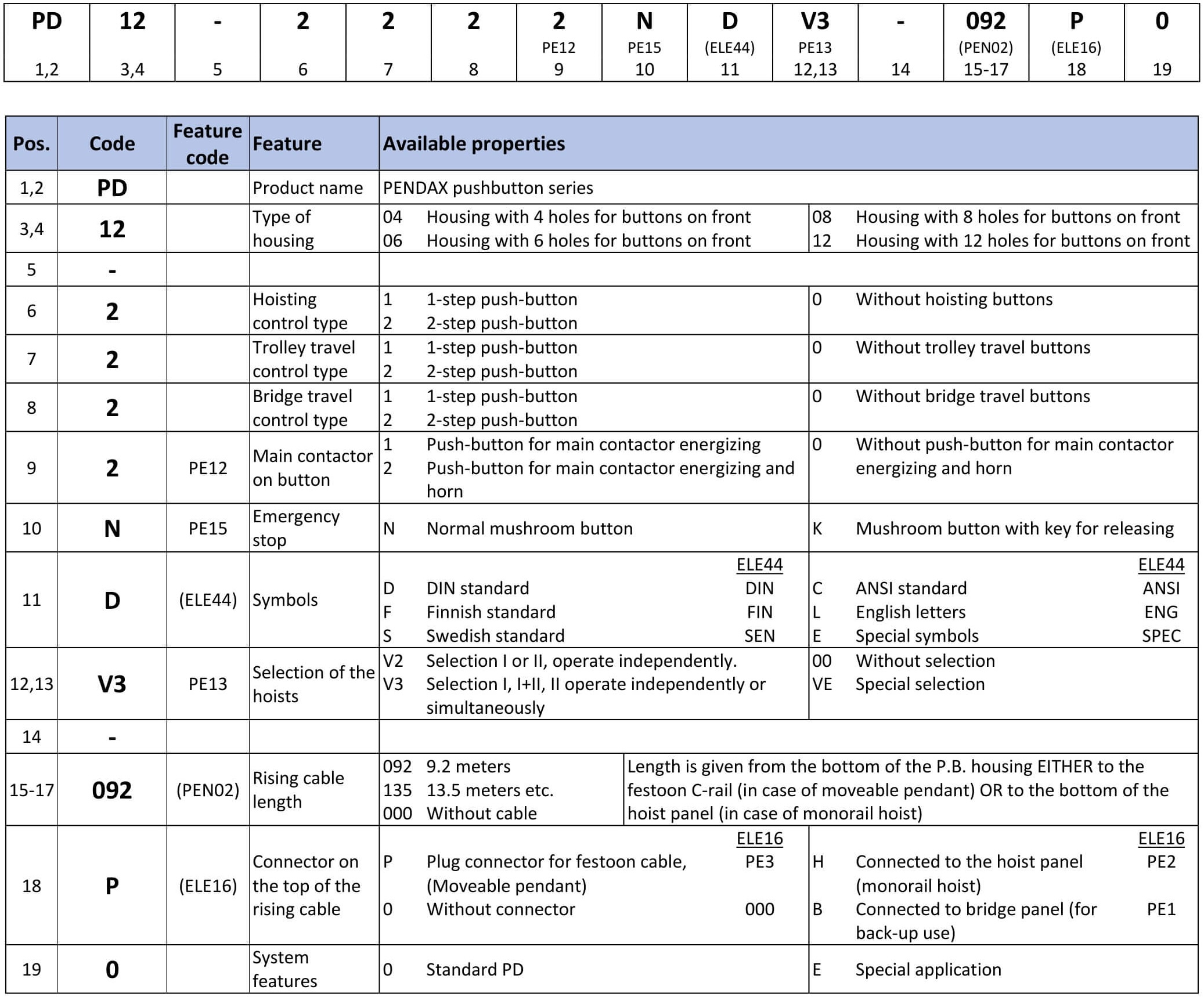

6.2 PD Push Button Pendant

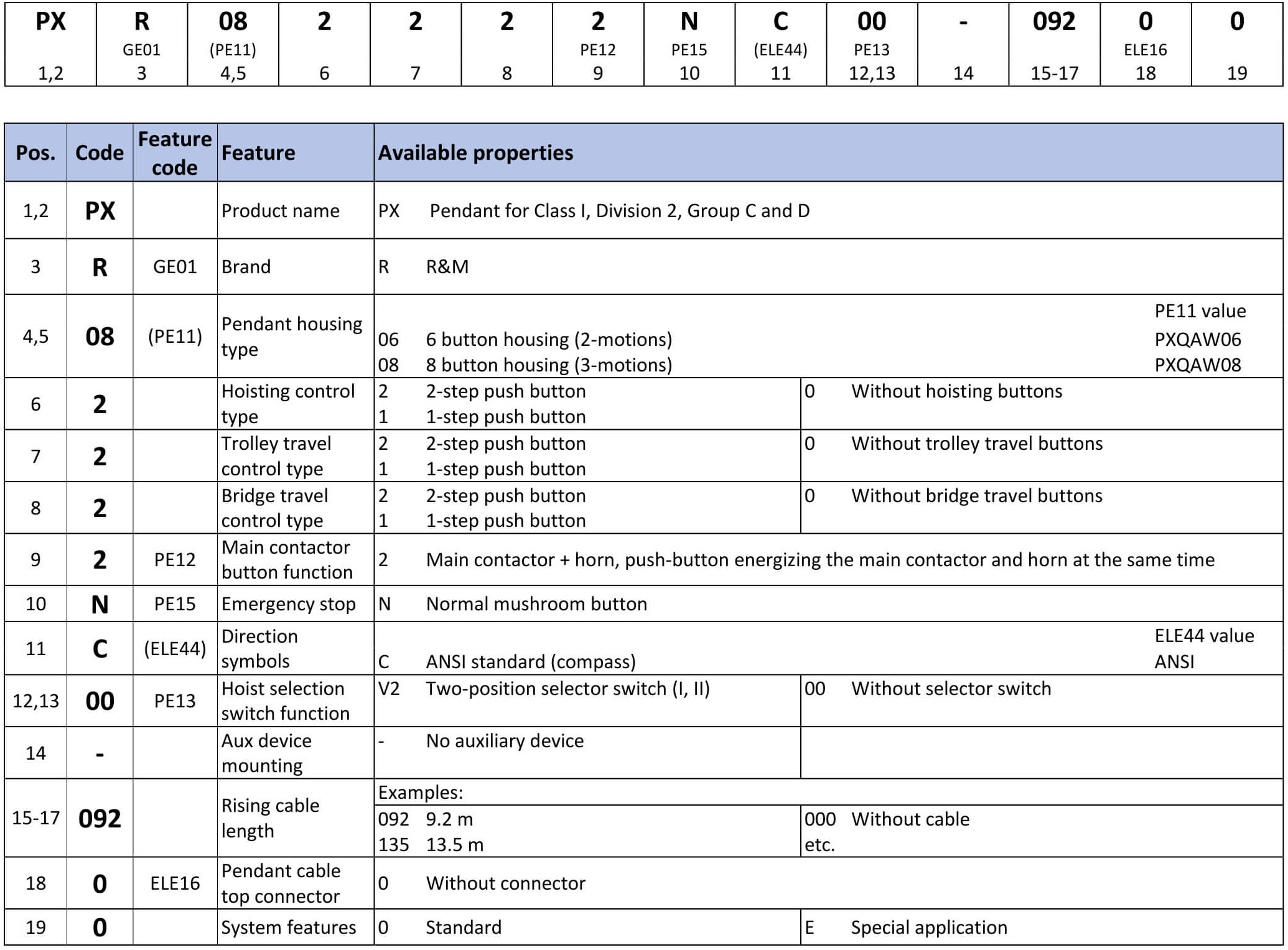

6.3 PXR Push Button Pendant (Hazardous location)

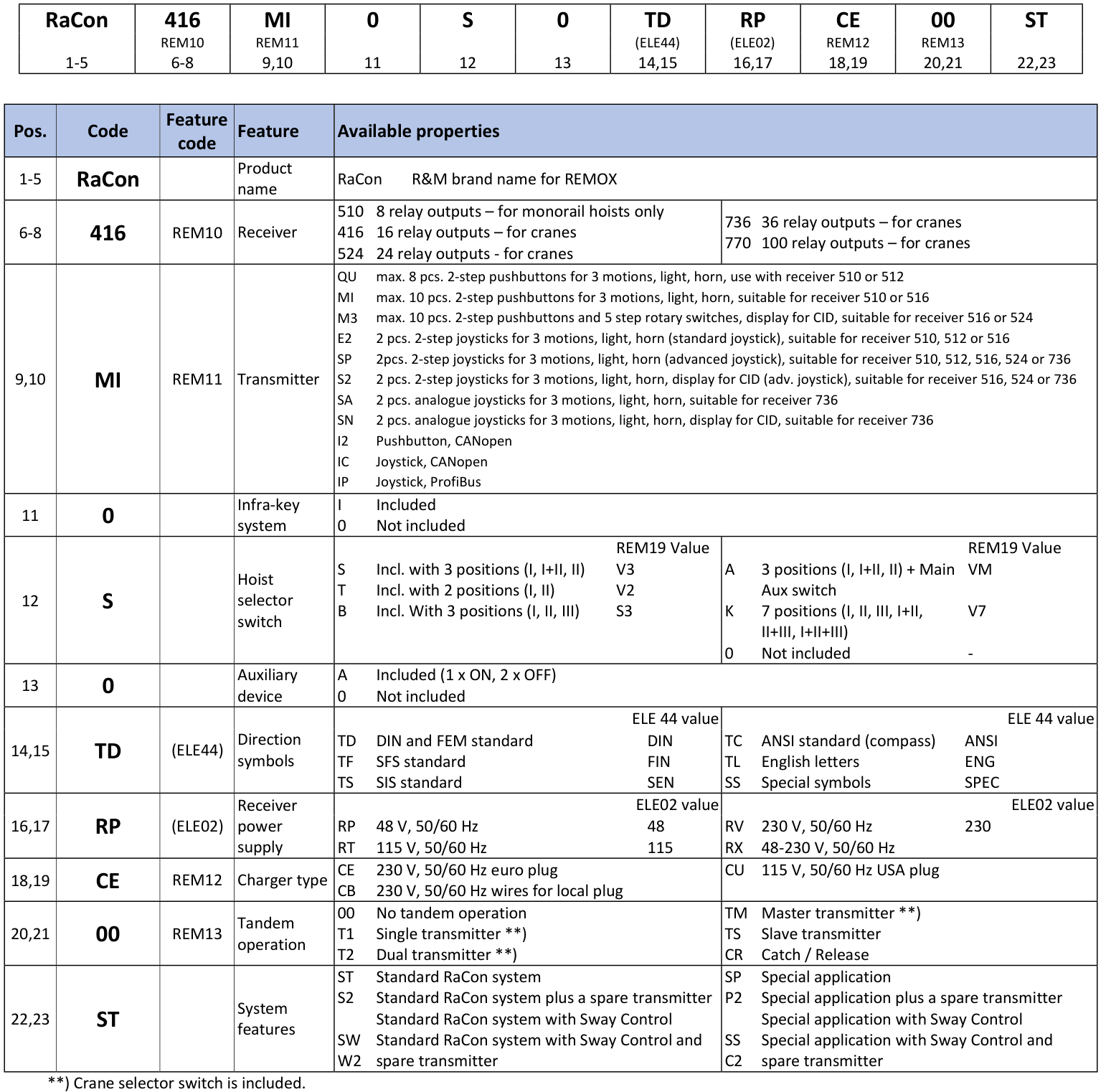

6.4 RaCon Radio Control

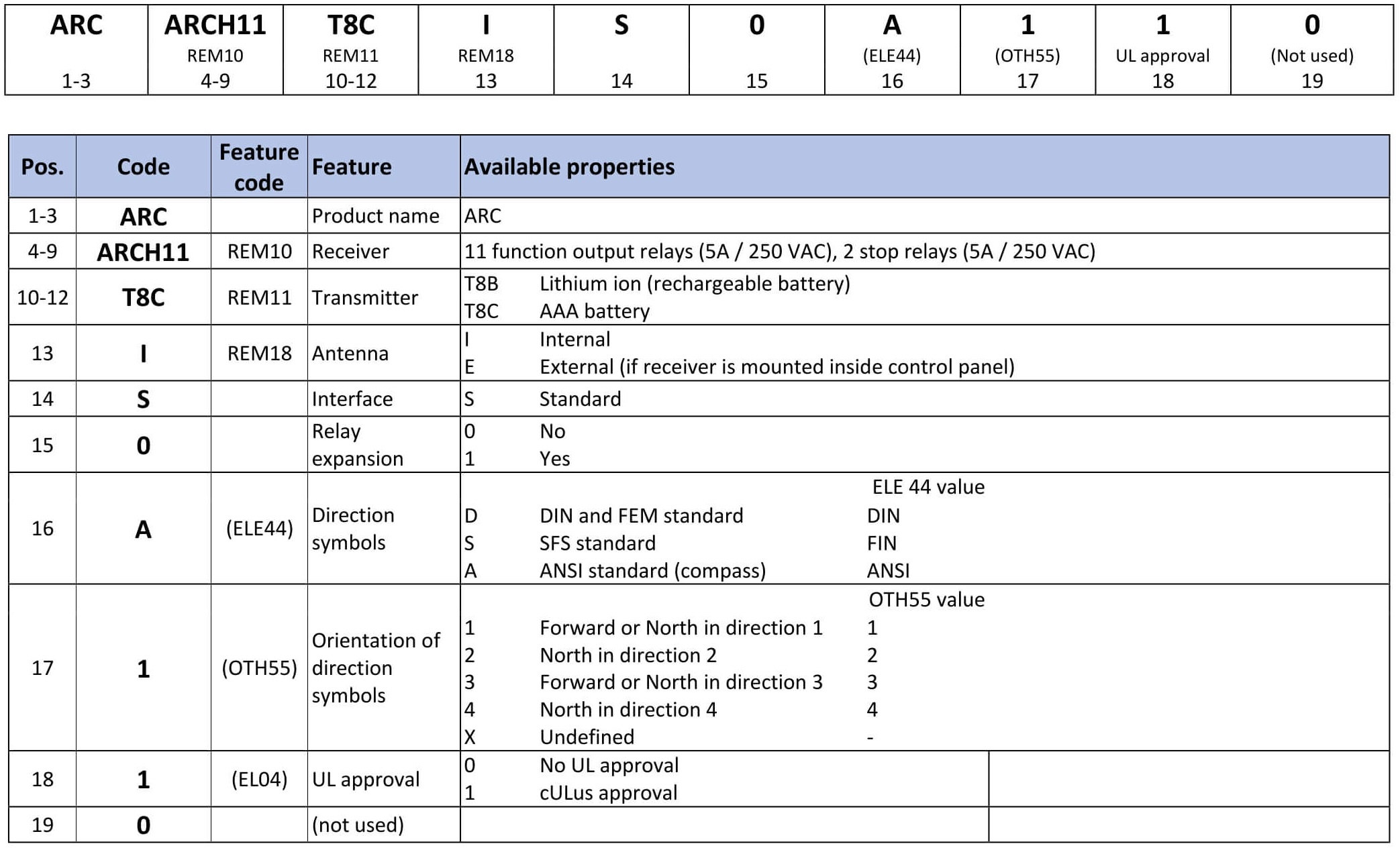

6.5 RaCon ARC Radio Control
7 INVERTER PRODUCT CODE

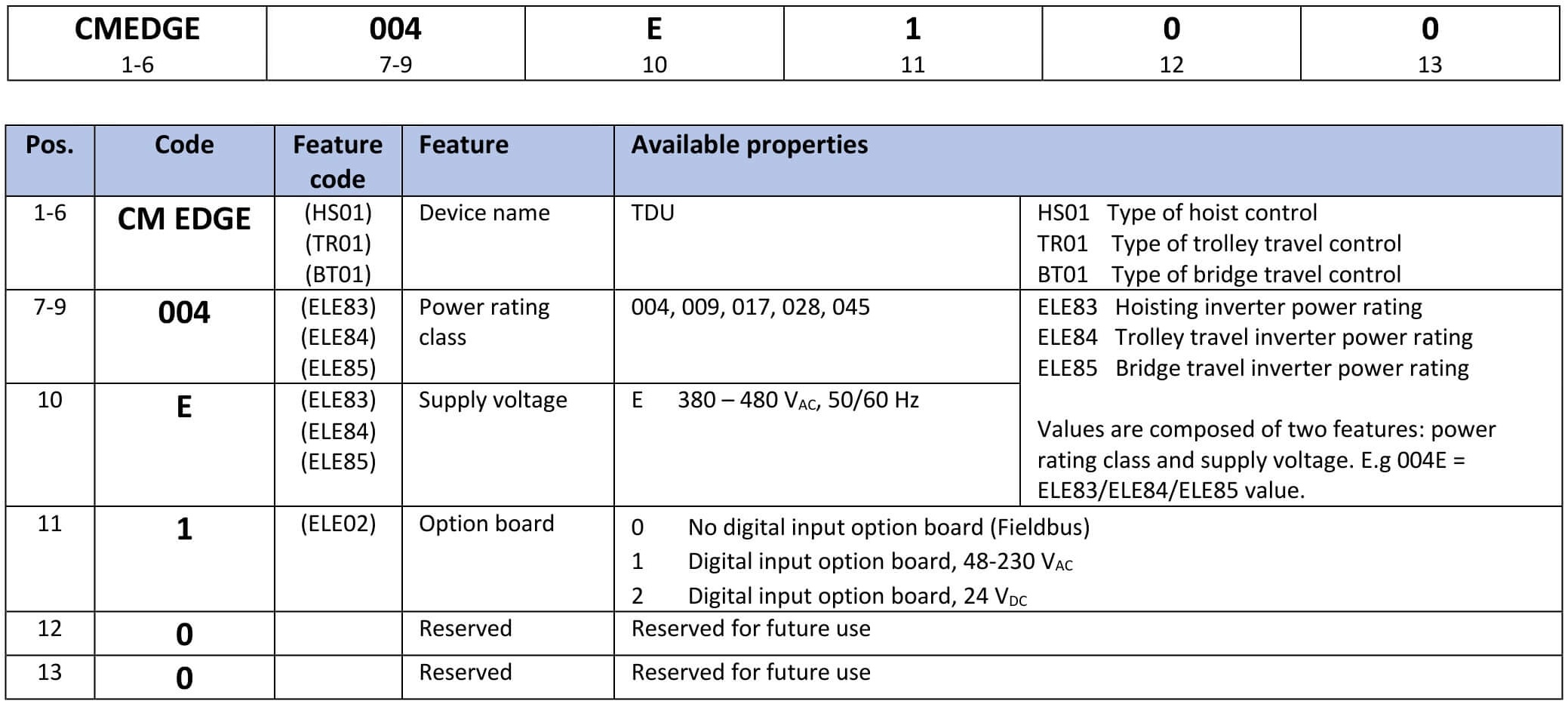

7.1 ControlMaster™ EDGE

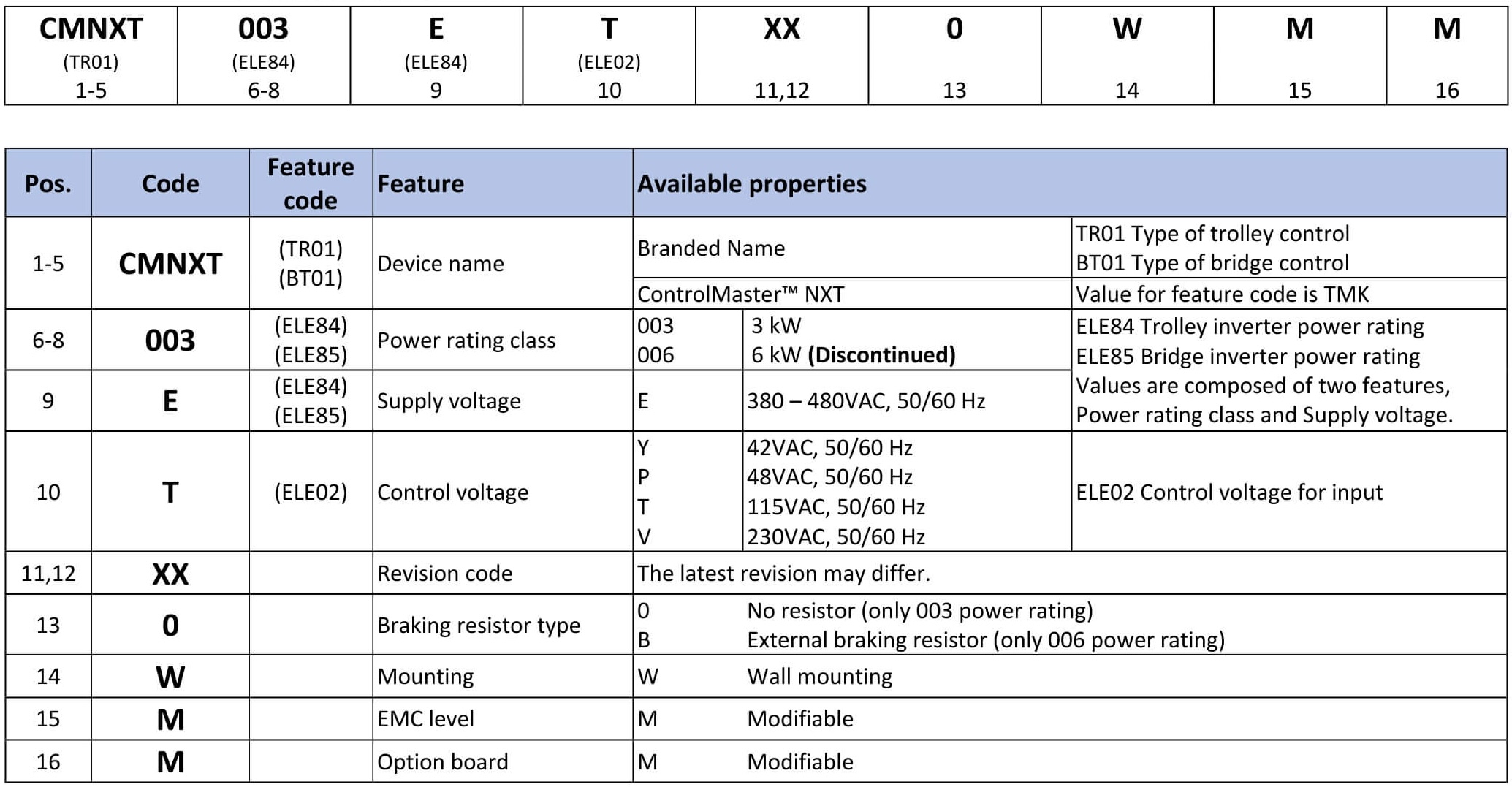

7.2 ControlMaster™ NXT

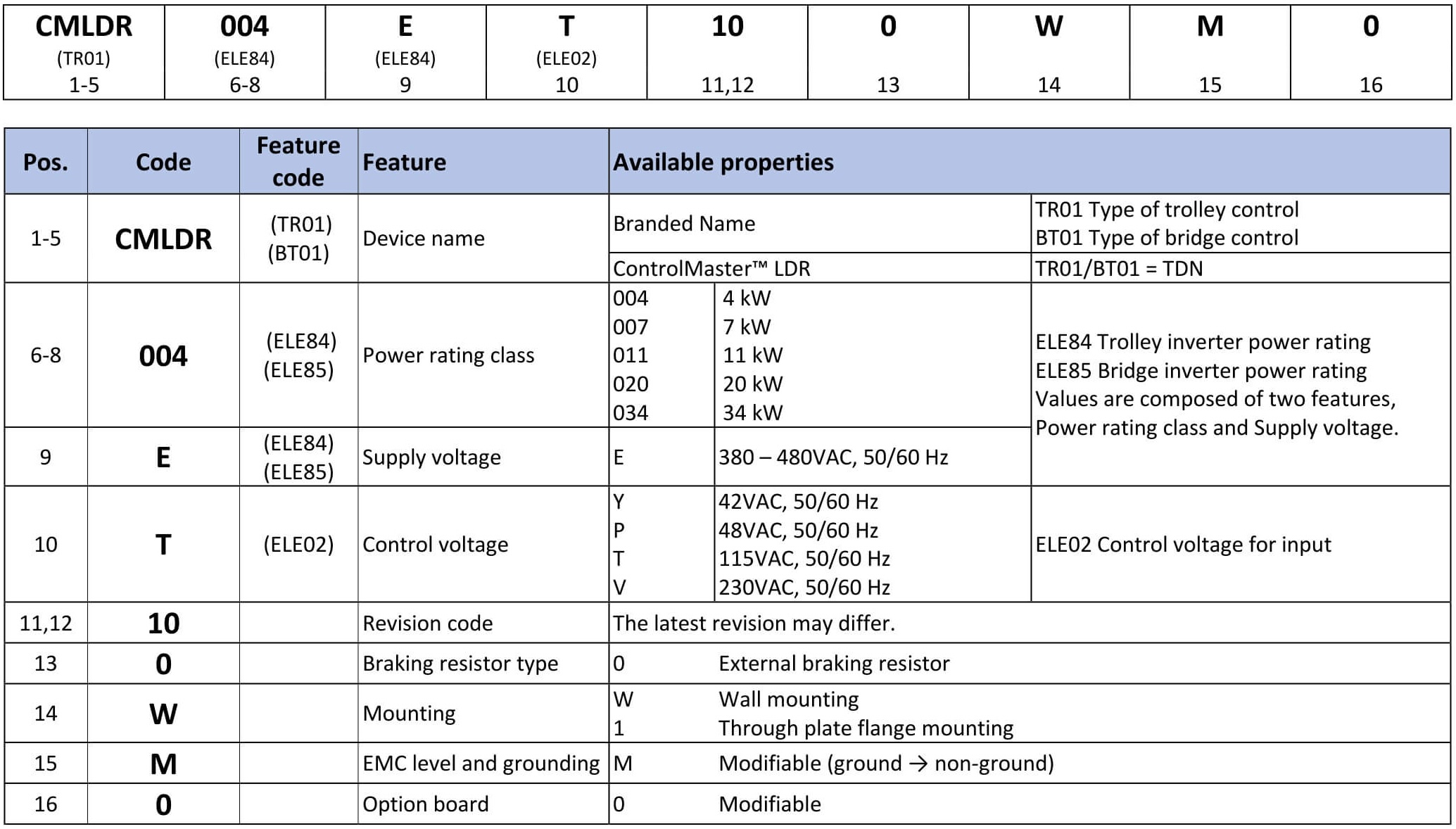

7.3 ControlMaster™ LDR

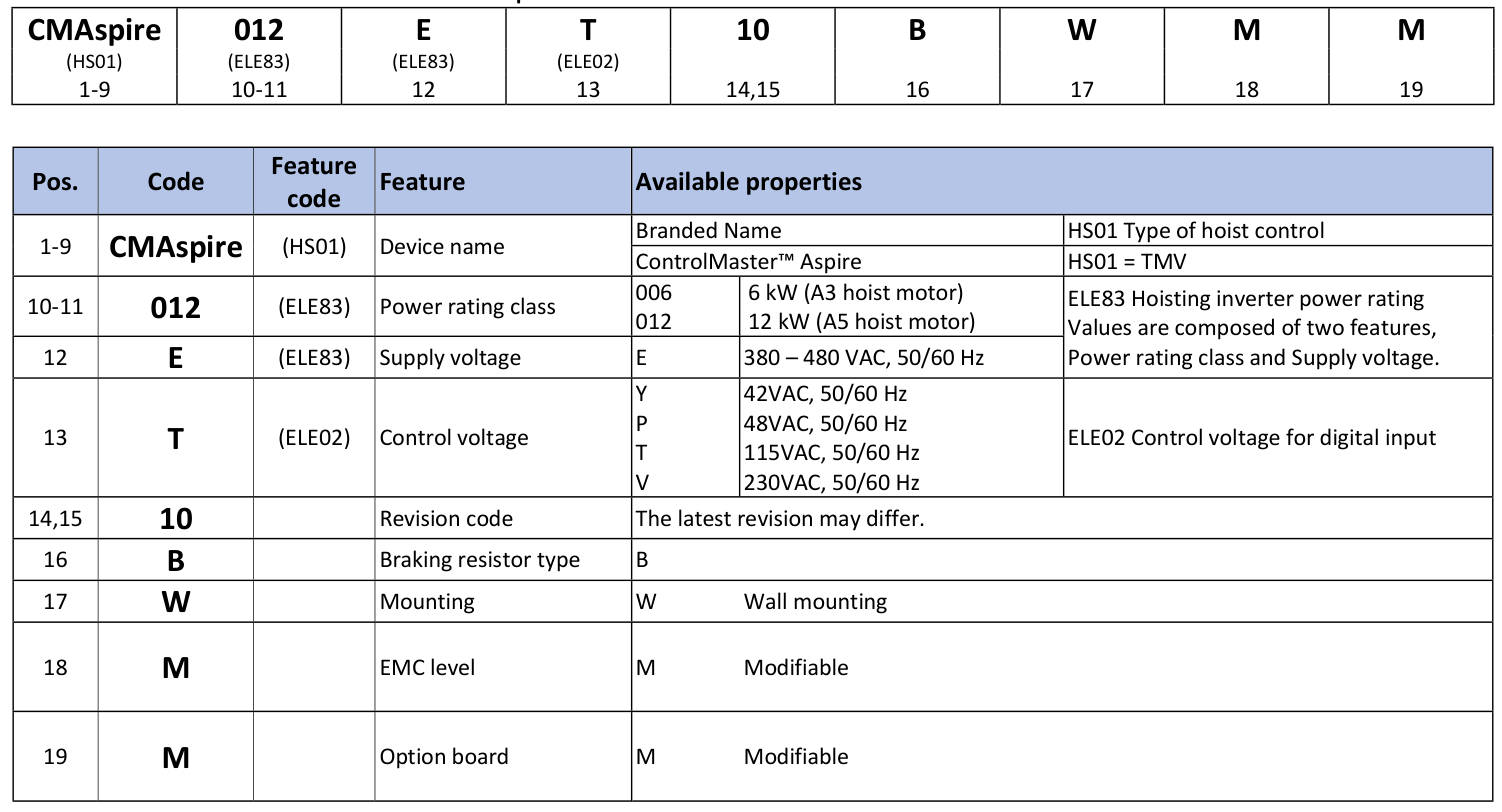

7.4 ControlMaster™ Aspire

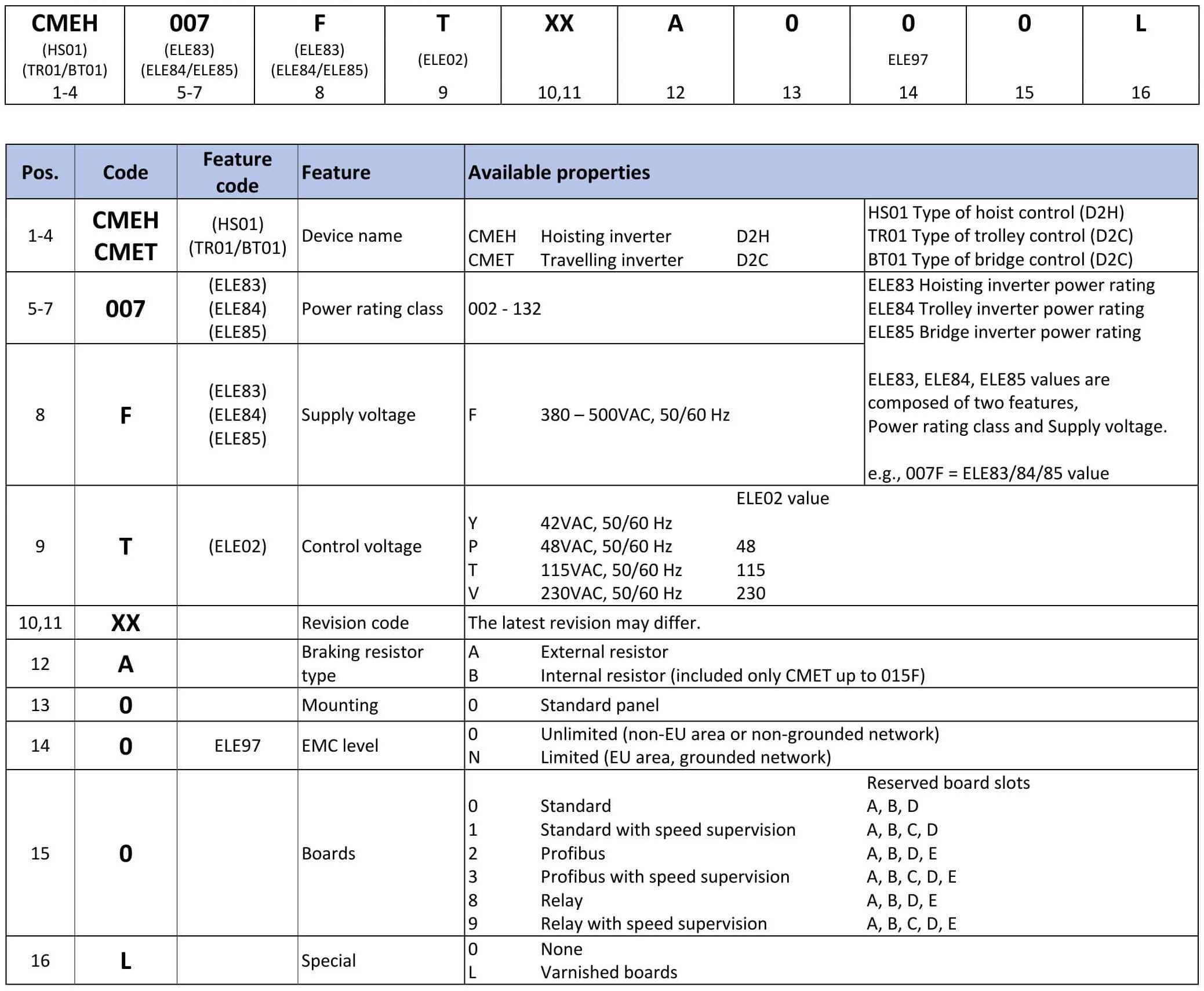

7.5 ControlMaster™ Elite
8 ELECTRIC CHAIN HOIST PRODUCT CODE

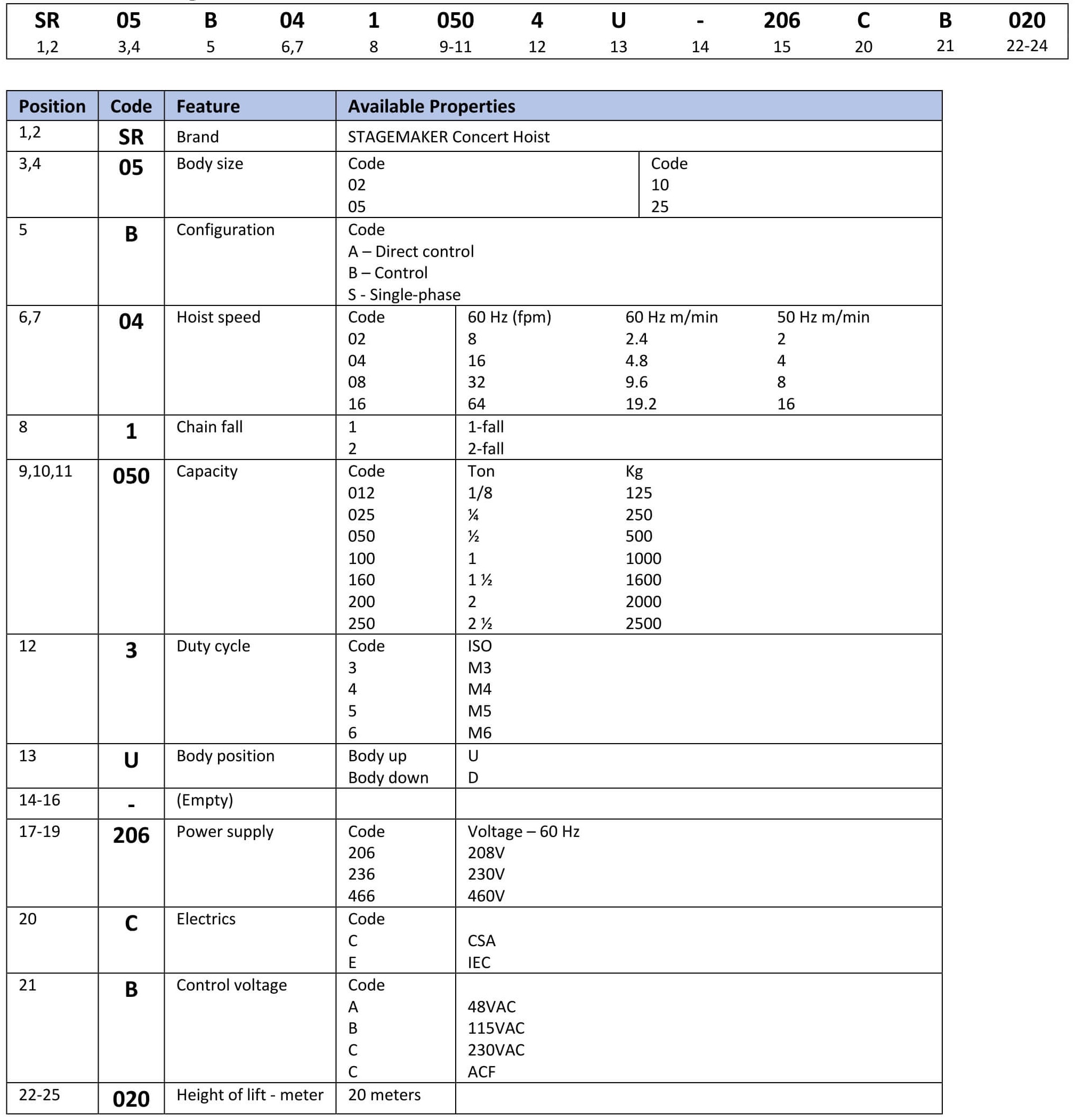

8.1 Stagemaker® SR Concert Hoist

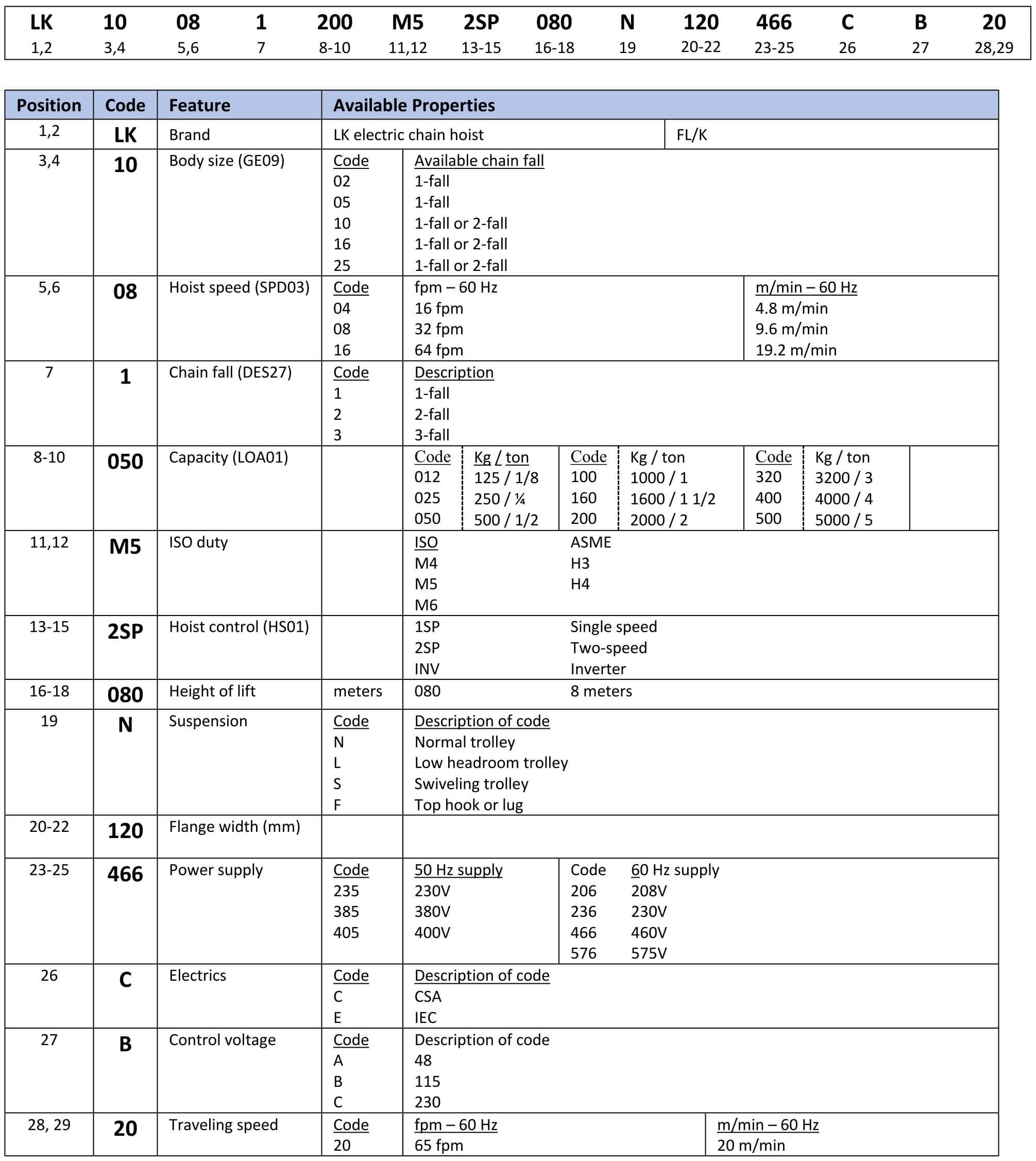

8.2 LK Electric Chain Hoist

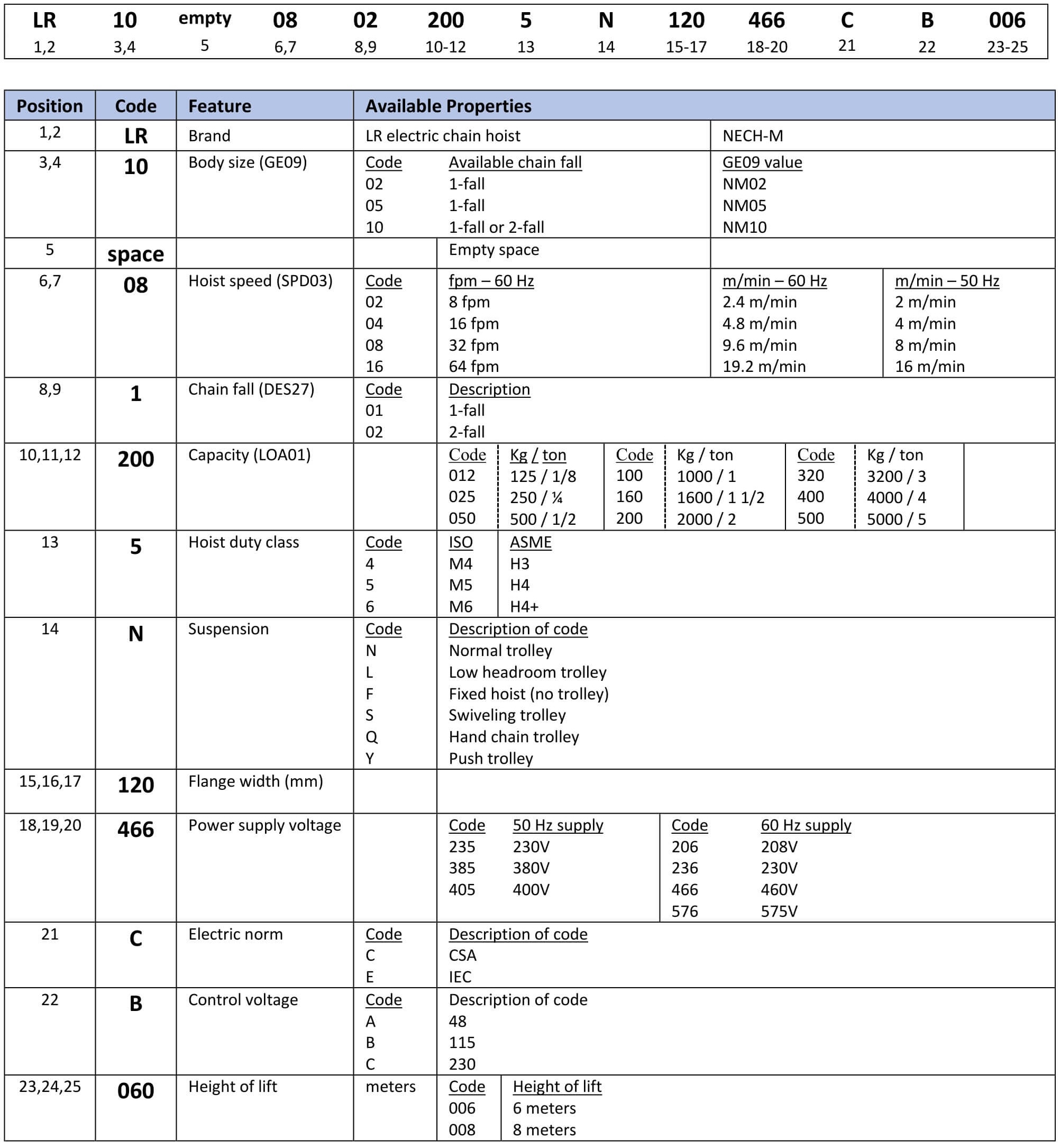

8.3 LR Electric Chain Hoist

1 ROPE HOIST PRODUCT CODE

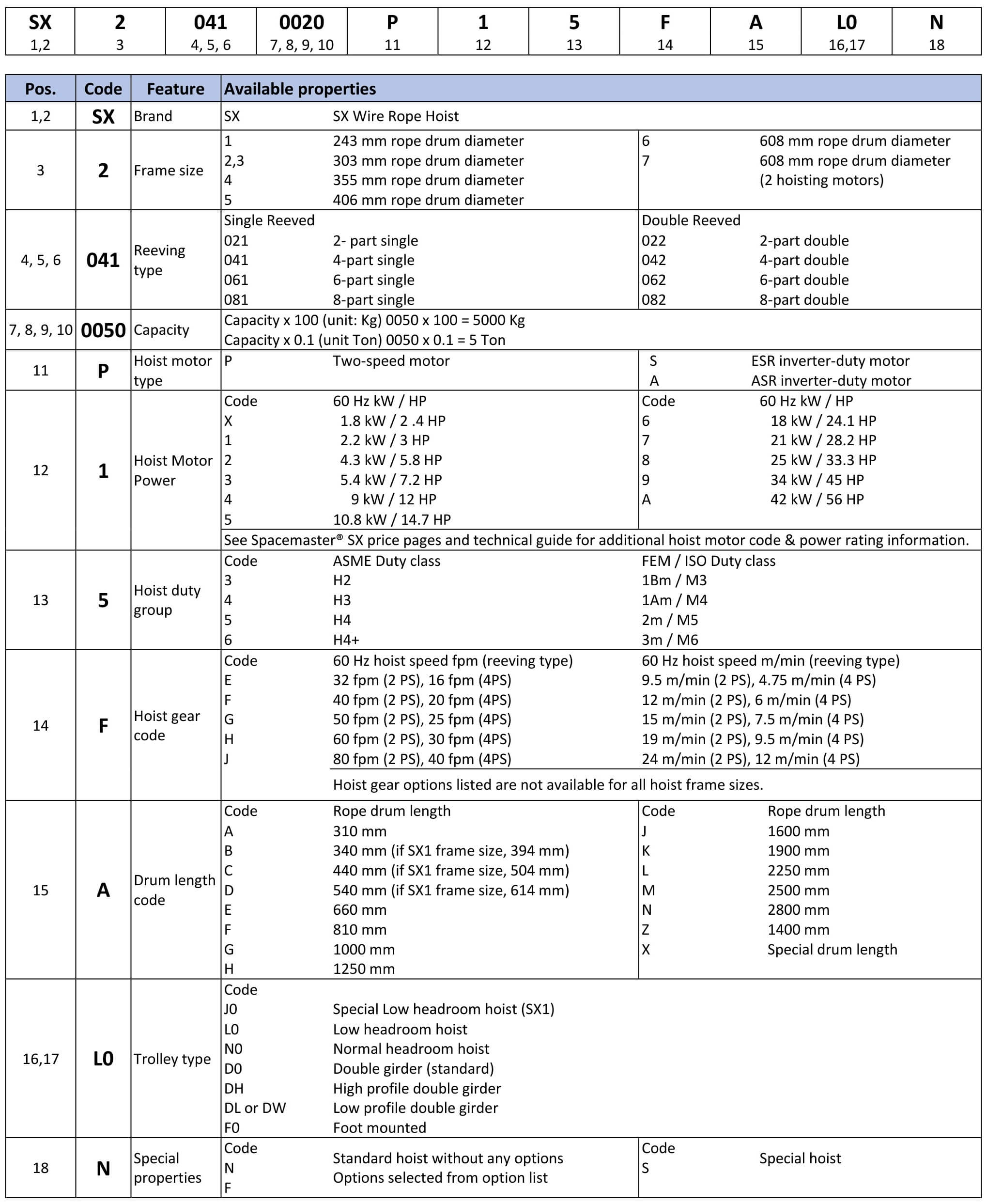

1.1 Spacemaster® SX Wire Rope Hoist

SX	2	041	0020	P	1	5	F	A	L0	N
1,2	3	4, 5, 6	7, 8, 9, 10	11	12	13	14	15	16,17	18

Pos.

Code

Feature

Available properties

1,2

Brand

SX	SX Wire Rope Hoist

Frame size

1	243 mm rope drum diameter
2,3	303 mm rope drum diameter
4	355 mm rope drum diameter
5	406 mm rope drum diameter

6	608 mm rope drum diameter
7	608 mm rope drum diameter (2 hoisting motors)

4, 5, 6

041

Reeving type

Single Reeved
021	2- part single
041	4-part single
061	6-part single
081	8-part single

Double Reeved
022	2-part double
042	4-part double
062	6-part double
082	8-part double

7, 8, 9, 10

0050

Capacity

Capacity x 100 (unit: Kg) 0050 x 100 = 5000 Kg
Capacity x 0.1 (unit Ton) 0050 x 0.1 = 5 Ton

Hoist motor type

P	Two-speed motor

S	ESR inverter-duty motor
A	ASR inverter-duty motor

Hoist Motor Power

Code	60 Hz kW / HP
X	1.8 kW / 2 .4 HP
1	2.2 kW / 3 HP
2	4.3 kW / 5.8 HP
3	5.4 kW / 7.2 HP
4	9 kW / 12 HP
5	10.8 kW / 14.7 HP

Code	60 Hz kW / HP
6	18 kW / 24.1 HP
7	21 kW / 28.2 HP
8	25 kW / 33.3 HP
9	34 kW / 45 HP
A	42 kW / 56 HP

See Spacemaster® SX price pages and technical guide for additional hoist motor code & power rating information.

Hoist duty group

Code	ASME Duty class	FEM / ISO Duty class
3	H2	1Bm / M3
4	H3	1Am / M4
5	H4	2m / M5
6	H4+	3m / M6

Hoist gear code

Code	60 Hz hoist speed fpm (reeving type)	60 Hz hoist speed m/min (reeving type)
E	32 fpm (2 PS), 16 fpm (4PS)	9.5 m/min (2 PS), 4.75 m/min (4 PS)
F	40 fpm (2 PS), 20 fpm (4PS)	12 m/min (2 PS), 6 m/min (4 PS)
G	50 fpm (2 PS), 25 fpm (4PS)	15 m/min (2 PS), 7.5 m/min (4 PS)
H	60 fpm (2 PS), 30 fpm (4PS)	19 m/min (2 PS), 9.5 m/min (4 PS)
J	80 fpm (2 PS), 40 fpm (4PS)	24 m/min (2 PS), 12 m/min (4 PS)
	Hoist gear options listed are not available for all hoist frame sizes.

Drum length code

Code	Rope drum length
A	310 mm
B	340 mm (if SX1 frame size, 394 mm)
C	440 mm (if SX1 frame size, 504 mm)
D	540 mm (if SX1 frame size, 614 mm)
E	660 mm
F	810 mm
G	1000 mm
H	1250 mm

Code	Rope drum length
J	1600 mm
K	1900 mm
L	2250 mm
M	2500 mm
N	2800 mm
Z	1400 mm
X	Special drum length

16,17

Trolley type

Code
J0	Special Low headroom hoist (SX1)
L0	Low headroom hoist
N0	Normal headroom hoist
D0	Double girder (standard)
DH	High profile double girder
DL or DW	Low profile double girder
F0	Foot mounted

Special properties

Code
N	Standard hoist without any options
F	Options selected from option list

Code
S	Special hoist

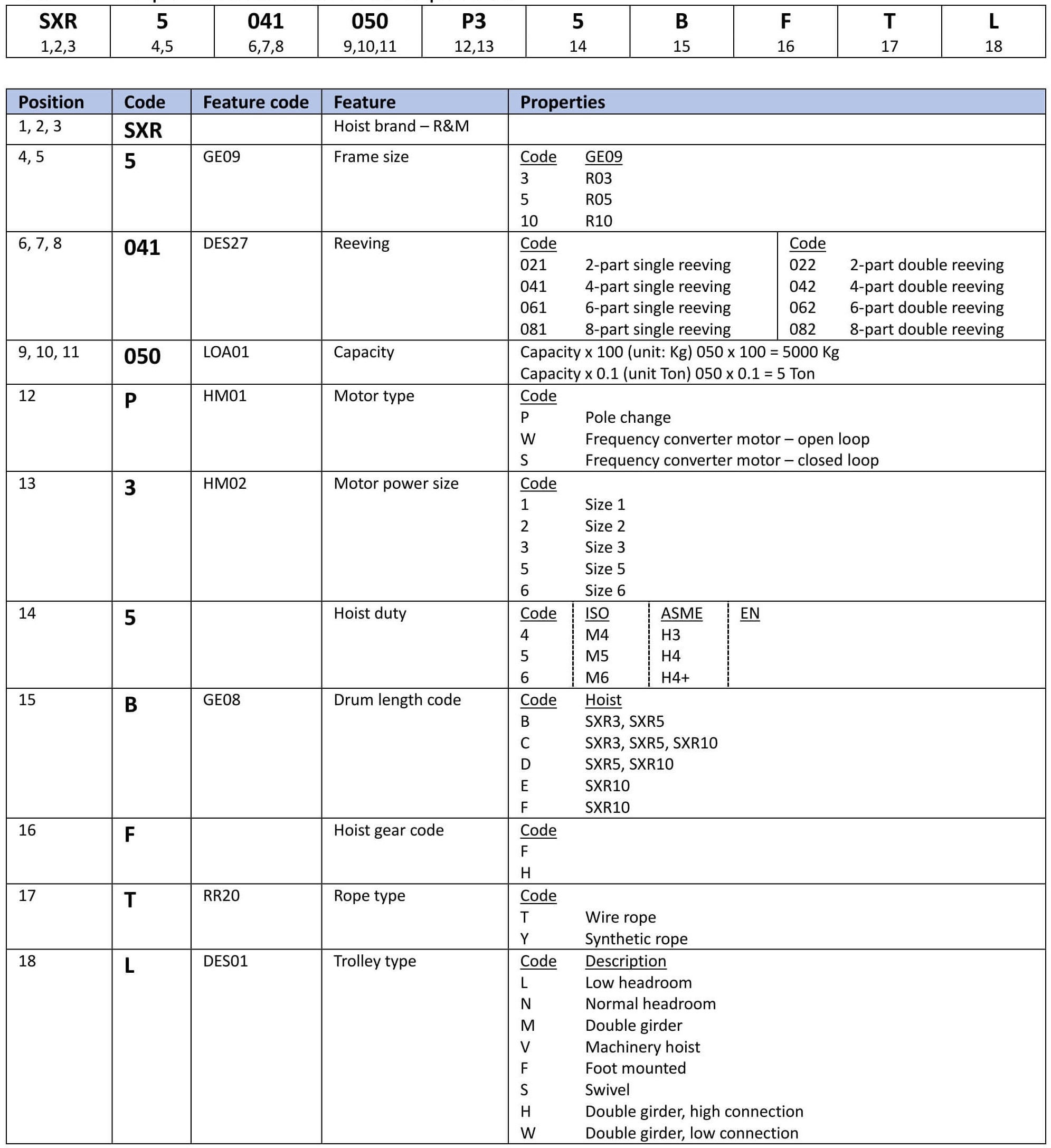

1.2 Spacemaster® SXR Wire Rope Hoist

SXR	5	041	050	P3	5	B	F	T	L
1,2,3	4,5	6,7,8	9,10,11	12,13	14	15	16	17	18

Position

Code

Feature code

Feature

Properties

1, 2, 3

SXR

Hoist brand – R&M

4, 5

GE09

Frame size

Code	GE09
3	R03
5	R05
10	R10

6, 7, 8

041

DES27

Reeving

Code
021	2-part single reeving
041	4-part single reeving
061	6-part single reeving
081	8-part single reeving

Code
022	2-part double reeving
042	4-part double reeving
062	6-part double reeving
082	8-part double reeving

9, 10, 11

050

LOA01

Capacity

Capacity x 100 (unit: Kg) 050 x 100 = 5000 Kg
Capacity x 0.1 (unit Ton) 050 x 0.1 = 5 Ton

HM01

Motor type

Code
P	Pole change
W	Frequency converter motor – open loop
S	Frequency converter motor – closed loop

HM02

Motor power size

Code
1	Size 1
2	Size 2
3	Size 3
5	Size 5
6	Size 6

Hoist duty

Code	ISO	ASME EN
4	M4	H3
5	M5	H4
6	M6	H4+

GE08

Drum length code

Code	Hoist
B	SXR3, SXR5
C	SXR3, SXR5, SXR10
D	SXR5, SXR10
E	SXR10
F	SXR10

Hoist gear code

Code
F
H

RR20

Rope type

Code
T	Wire rope
Y	Synthetic rope

DES01

Trolley type

Code	Description
L	Low headroom
N	Normal headroom
M	Double girder
V	Machinery hoist
F	Foot mounted
S	Swivel
H	Double girder, high connection
W	Double girder, low connection

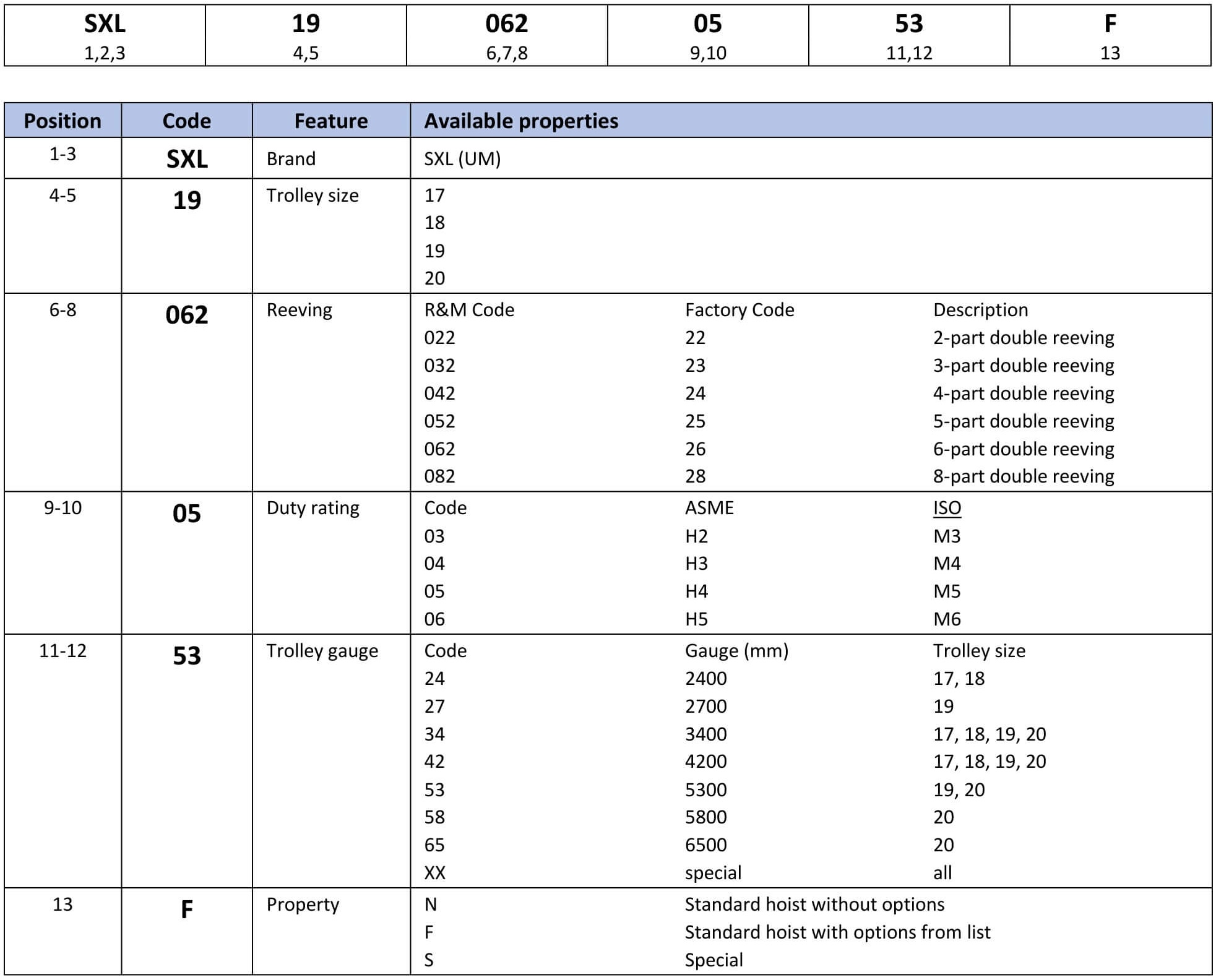

1.3 Spacemaster® SXL Wire Rope Hoist

SXL	19	062	05	53	F
1,2,3	4,5	6,7,8	9,10	11,12	13

Position

Code

Feature

Available properties

1-3

SXL

Brand

SXL (UM)

4-5

Trolley size

17
18
19
20

6-8

062

Reeving

R&M Code	Factory Code	Description
022	22	2-part double reeving
032	23	3-part double reeving
042	24	4-part double reeving
052	25	5-part double reeving
062	26	6-part double reeving
082	28	8-part double reeving

9-10

Duty rating

Code	ASME	ISO
03	H2	M3
04	H3	M4
05	H4	M5
06	H5	M6

11-12

Trolley gauge

Code	Gauge (mm)	Trolley size
24	2400	17, 18
27	2700	19
34	3400	17, 18, 19, 20
42	4200	17, 18, 19, 20
53	5300	19, 20
58	5800	20
65	6500	20
XX	special	all

Property

N	Standard hoist without options
F	Standard hoist with options from list
S	Special

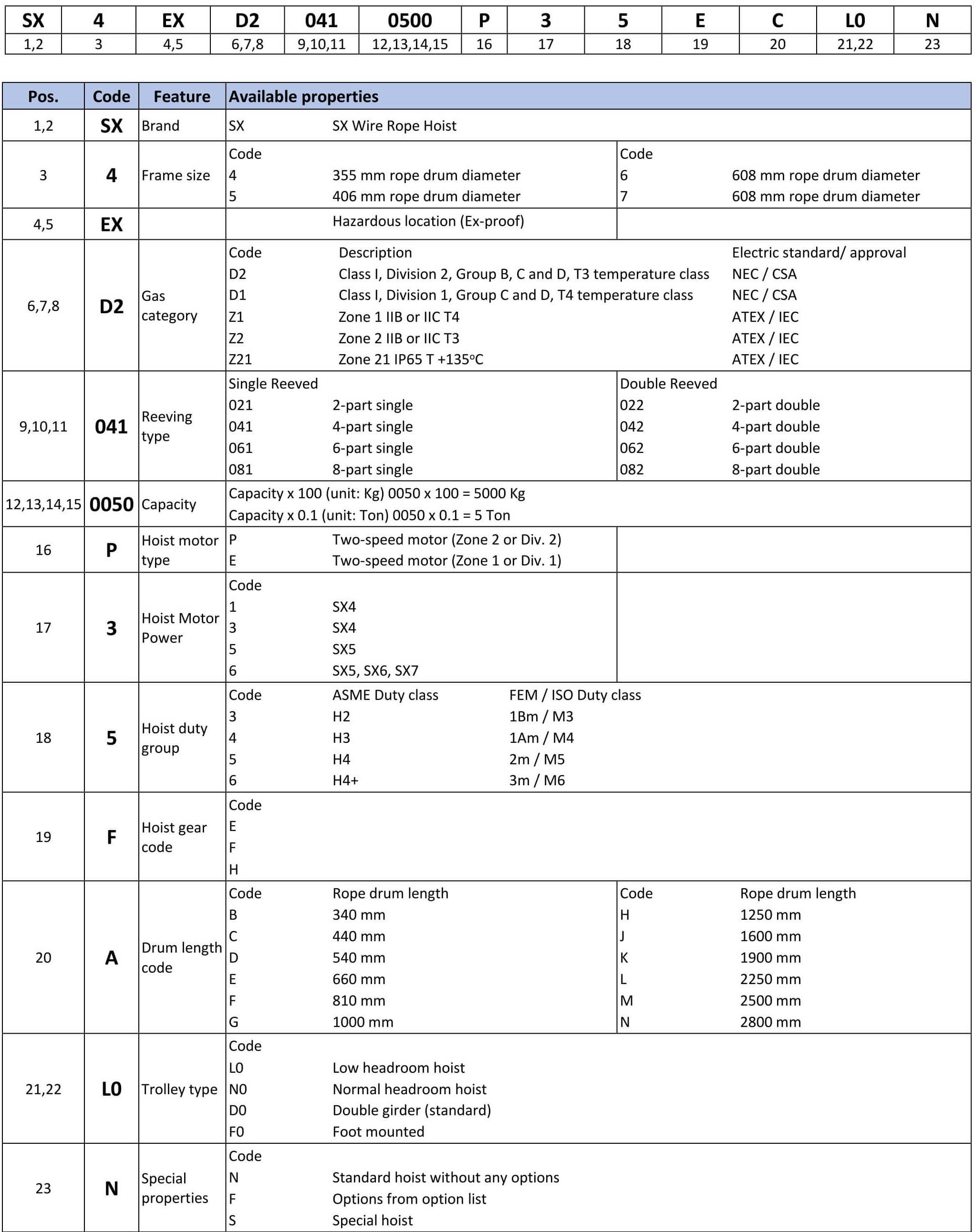

1.4 Spacemaster® EX Wire Rope Hoist (Hazardous location)

SX	4	EX	D2	041	0500	P	3	5	E	C	L0	N
1,2	3	4,5	6,7,8	9,10,11	12,13,14,15	16	17	18	19	20	21,22	23

Pos.

Code

Feature

Available properties

1,2

Brand

SX	SX Wire Rope Hoist

Frame size

Code
4	355 mm rope drum diameter
5	406 mm rope drum diameter

Code
6	608 mm rope drum diameter
7	608 mm rope drum diameter

4,5

Hazardous location (Ex-proof)

6,7,8

Gas category

Code	Description	Electric standard/ approval
D2	Class I, Division 2, Group B, C and D, T3 temperature class	NEC / CSA
D1	Class I, Division 1, Group C and D, T4 temperature class	NEC / CSA
Z1	Zone 1 IIB or IIC T4	ATEX / IEC
Z2	Zone 2 IIB or IIC T3	ATEX / IEC
Z21	Zone 21 IP65 T +135oC	ATEX / IEC

9,10,11

041

Reeving type

Single Reeved
021	2-part single
041	4-part single
061	6-part single
081	8-part single

Double Reeved
022	2-part double
042	4-part double
062	6-part double
082	8-part double

12,13,14,15

0050

Capacity

Capacity x 100 (unit: Kg) 0050 x 100 = 5000 Kg
Capacity x 0.1 (unit: Ton) 0050 x 0.1 = 5 Ton

Hoist motor type

P	Two-speed motor (Zone 2 or Div. 2)
E	Two-speed motor (Zone 1 or Div. 1)

Hoist Motor Power

Code
1	SX4
3	SX4
5	SX5
6	SX5, SX6, SX7

Hoist duty group

Code	ASME Duty class FEM / ISO Duty class
3	H2	1Bm / M3
4	H3	1Am / M4
5	H4	2m / M5
6	H4+	3m / M6

Hoist gear code

Code
E
F
H

Drum length code

Code	Rope drum length
B	340 mm
C	440 mm
D	540 mm
E	660 mm
F	810 mm
G	1000 mm

Code	Rope drum length
H	1250 mm
J	1600 mm
K	1900 mm
L	2250 mm
M	2500 mm
N	2800 mm

21,22

Trolley type

Code
L0	Low headroom hoist
N0	Normal headroom hoist
D0	Double girder (standard)
F0	Foot mounted

Special properties

Code
N	Standard hoist without any options
F	Options from option list
S	Special hoist

2 END TRUCK PRODUCT CODE

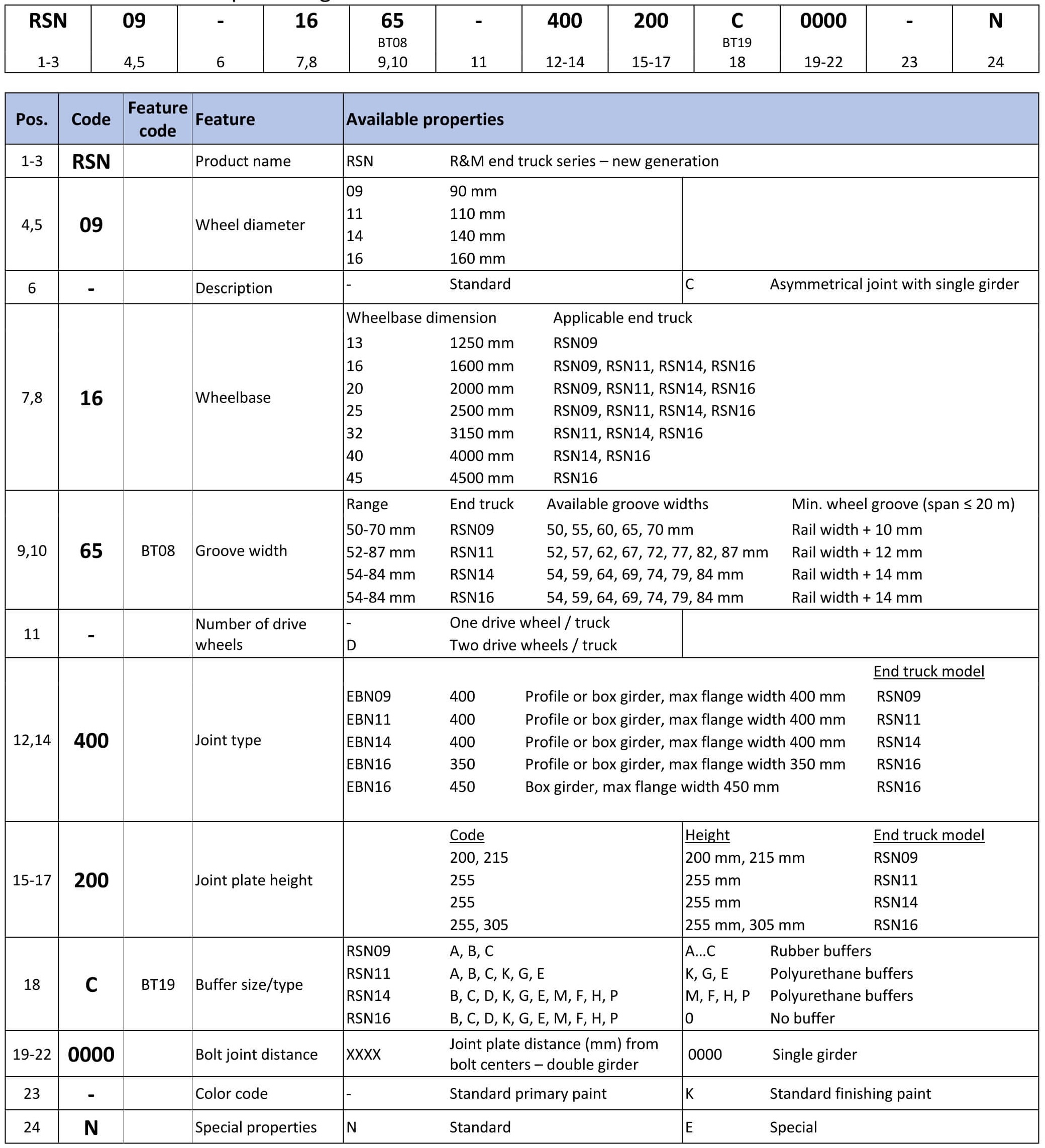

2.1 RSN Top-running End Truck

RSN	09	-	16	65	-	400	200	C	0000	-	N
1-3	4,5	6	7,8	BT08 9,10	11	12-14	15-17	BT19 18	19-22	23	24

Pos.

Code

Feature code

Feature

Available properties

1-3

RSN

Product name

RSN	R&M end truck series – new generation

4,5

Wheel diameter

09	90 mm
11	110 mm
14	140 mm
16	160 mm

Description

Standard

C	Asymmetrical joint with single girder

7,8

Wheelbase

Wheelbase dimension		Applicable end truck
13	1250 mm	RSN09
16	1600 mm	RSN09, RSN11, RSN14, RSN16
20	2000 mm	RSN09, RSN11, RSN14, RSN16
25	2500 mm	RSN09, RSN11, RSN14, RSN16
32	3150 mm	RSN11, RSN14, RSN16
40	4000 mm	RSN14, RSN16
45	4500 mm	RSN16

9,10

BT08

Groove width

Range	End truck	Available groove widths	Min. wheel groove (span ≤ 20 m)
50-70 mm	RSN09	50, 55, 60, 65, 70 mm	Rail width + 10 mm
52-87 mm	RSN11	52, 57, 62, 67, 72, 77, 82, 87 mm	Rail width + 12 mm
54-84 mm	RSN14	54, 59, 64, 69, 74, 79, 84 mm	Rail width + 14 mm
54-84 mm	RSN16	54, 59, 64, 69, 74, 79, 84 mm	Rail width + 14 mm

Number of drive wheels

-	One drive wheel / truck
D	Two drive wheels / truck

12,14

400

Joint type

			End truck model
EBN09	400	Profile or box girder, max flange width 400 mm	RSN09
EBN11	400	Profile or box girder, max flange width 400 mm	RSN11
EBN14	400	Profile or box girder, max flange width 400 mm	RSN14
EBN16	350	Profile or box girder, max flange width 350 mm	RSN16
EBN16	450	Box girder, max flange width 450 mm	RSN16

15-17

200

Joint plate height

Code
200, 215
255
255
255, 305

Height	End truck model
200 mm, 215 mm	RSN09
255 mm	RSN11
255 mm	RSN14
255 mm, 305 mm	RSN16

BT19

Buffer size/type

RSN09	A, B, C
RSN11	A, B, C, K, G, E
RSN14	B, C, D, K, G, E, M, F, H, P
RSN16	B, C, D, K, G, E, M, F, H, P

A…C	Rubber buffers
K, G, E	Polyurethane buffers
M, F, H, P	Polyurethane buffers
0	No buffer

19-22

0000

Bolt joint distance

	Joint plate distance (mm) from
XXXX	bolt centers – double girder

0000	Single girder

Color code

-	Standard primary paint

K	Standard finishing paint

Special properties

Standard

Special

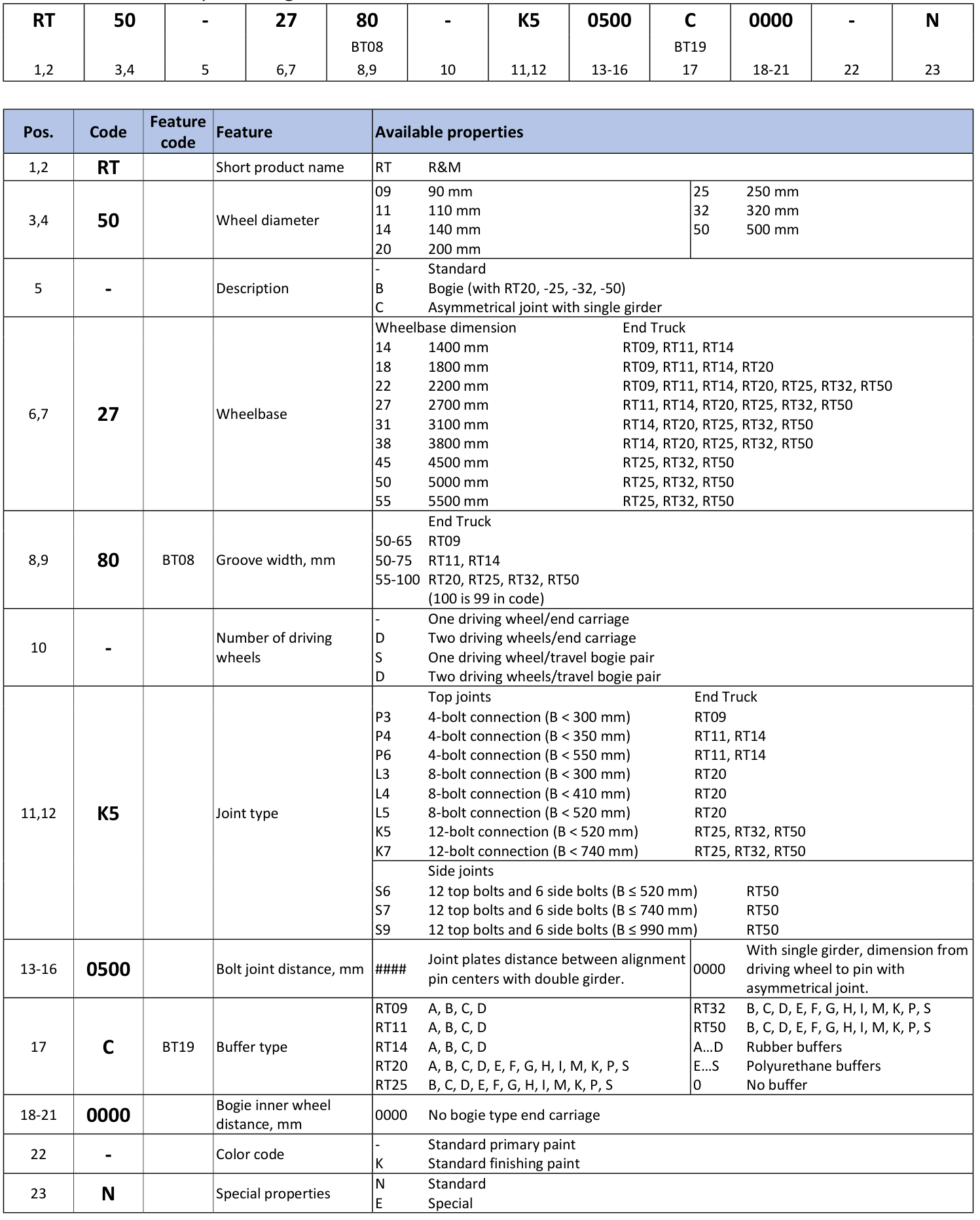

2.2 RT Top-running End Truck

RT	50	-	27	80	-	K5	0500	C	0000	-	N
1,2	3,4	5	6,7	BT08 8,9	10	11,12	13-16	BT19 17	18-21	22	23

Pos.

Code

Feature code

Feature

Available properties

1,2

Short product name

R&M

3,4

Wheel diameter

09	90 mm
11	110 mm
14	140 mm
20	200 mm

25	250 mm
32	320 mm
50	500 mm

Description

-	Standard
B	Bogie (with RT20, -25, -32, -50)
C	Asymmetrical joint with single girder

6,7

Wheelbase

Wheelbase dimension		End Truck
14	1400 mm	RT09, RT11, RT14
18	1800 mm	RT09, RT11, RT14, RT20
22	2200 mm	RT09, RT11, RT14, RT20, RT25, RT32, RT50
27	2700 mm	RT11, RT14, RT20, RT25, RT32, RT50
31	3100 mm	RT14, RT20, RT25, RT32, RT50
38	3800 mm	RT14, RT20, RT25, RT32, RT50
45	4500 mm	RT25, RT32, RT50
50	5000 mm	RT25, RT32, RT50
55	5500 mm	RT25, RT32, RT50

8,9

BT08

Groove width, mm

End Truck
50-65 RT09
50-75 RT11, RT14
55-100 RT20, RT25, RT32, RT50
(100 is 99 in code)

Number of driving wheels

-	One driving wheel/end carriage
D	Two driving wheels/end carriage
S	One driving wheel/travel bogie pair
D	Two driving wheels/travel bogie pair

11,12

Joint type

	Top joints	End Truck
P3	4-bolt connection (B < 300 mm)	RT09
P4	4-bolt connection (B < 350 mm)	RT11, RT14
P6	4-bolt connection (B < 550 mm)	RT11, RT14
L3	8-bolt connection (B < 300 mm)	RT20
L4	8-bolt connection (B < 410 mm)	RT20
L5	8-bolt connection (B < 520 mm)	RT20
K5	12-bolt connection (B < 520 mm)	RT25, RT32, RT50
K7	12-bolt connection (B < 740 mm)	RT25, RT32, RT50

	Side joints
S6	12 top bolts and 6 side bolts (B ≤ 520 mm)	RT50
S7	12 top bolts and 6 side bolts (B ≤ 740 mm)	RT50
S9	12 top bolts and 6 side bolts (B ≤ 990 mm)	RT50

13-16

0500

Bolt joint distance, mm

	Joint plates distance between alignment
####	pin centers with double girder.

	With single girder, dimension from
0000	driving wheel to pin with asymmetrical joint.

BT19

Buffer type

RT09	A, B, C, D
RT11	A, B, C, D
RT14	A, B, C, D
RT20	A, B, C, D, E, F, G, H, I, M, K, P, S
RT25	B, C, D, E, F, G, H, I, M, K, P, S

RT32	B, C, D, E, F, G, H, I, M, K, P, S
RT50	B, C, D, E, F, G, H, I, M, K, P, S
A…D	Rubber buffers
E…S	Polyurethane buffers
0	No buffer

18-21

0000

Bogie inner wheel distance, mm

0000	No bogie type end carriage

Color code

-	Standard primary paint
K	Standard finishing paint

Special properties

N	Standard
E	Special

2.3 RTN and RTL Top-running End Truck

RTN	09	-	16	60	-	A3	0000	C	0000	-	N
1-3	4,5	6	7,8	9,10	11	12,13	14-17	18	19-22	23	24

Pos.

Code

Feature

Available properties

1-3

RTN

Product name

RTN	R&M end truck series – new generation

RTL	R&M end truck series – new generation

4,5

Wheel diameter

Code	Wheel diameter End truck
09	90 mm	RTN, RCL
11	110 mm	RTN
14	140 mm	RTN

Code	Wheel diameter End truck
16	160 mm	RTN
20	200 mm	RTN
25	250 mm	RTN

Code	Wheel diameter End truck
32	315 mm	RTN
40	400 mm	RTN
50	500 mm	RTN

Description

-	Standard
B	Bogie

C	Asymmetrical joint location with single girder

7,8

Wheelbase

Wheelbase dimension Applicable end truck
12	1200 mm	RTN20B, RTN25B
13	1250 mm	RTN09, RTL09
14	1400 mm	RTN20B, RTN25B, RTN32B, RTN40B
16	1600 mm	RTN09, RTL09, RTN11, RTN14, RTN16, RTN20, RTN20B, RTN25B, RTN32B, RTN40B, RTN50B
18	1800 mm	RTN20B, RTN40B, RTN50B
20	2000 mm	RTN09, RTL09, RTN11, RTN14, RTN16, RTN20, RTN20B, RTN25B, RTN32B, RTN40B, RTN50B
22	2200 mm	RTN25B, RTN50B
25	2500 mm	RTN09, RTN11, RTN14, RTN16, RTN20, RTN25, RTN32, RTN40, RTN50B
32	3150 mm	RTN11, RTN14, RTN16, RTN20, RTN25, RTN32, RTN40, RTN50
35	3500 mm	RTN14
40	4000 mm	RTN14, RTN16, RTN20, RTN25, RTN32, RTN40, RTN50
45	4500 mm	RTN20, RTN25, RTN32, RTN40, RTN50
50	5000 mm	RTN32, RTN40, RTN50
55	5500 mm	RTN32, RTN40, RTN50
65	6500 mm	RTN50
75	7500 mm	RTN50

9,10

BT08

Groove width, mm

Range	End truck	Min. wheel groove
50-70	RTN09, RTL09	Rail width + 10 mm
52-87	RTN11	Rail width + 12 mm
54-84	RTN14	Rail width + 14 mm
54-84	RTN16	Rail width + 14 mm
Wheel grooves available in 5 mm increments

Range	End truck	Min. wheel groove
54-99	RTN25	Rail width + 14 mm
54-94	RTN20, RTN32	Rail width + 14 mm
55-105	RTN40	Rail width + 15 mm
55-130	RTN50	Rail width + 15 mm
See RTN end truck technical guide for wheel groove width rules

Number of drive wheels

-	One drive wheel / truck
D	Two drive wheels / truck

S	One drive wheel / bogey end truck

12,13

Joint type

	Top joint connection	End truck
A3	4-bolts (flg. width < 300mm)	RTN/L09
A4	4-bolts (flg width < 400mm)	RTN11
A6	4-bolts (flg width < 600mm)	RTN11
B4	8-bolts (flg width < 350mm)	RTN16
B6	8-bolts (flg width < 550mm)	RTN16
L3	8-bolt s (flg width < 300mm)	RTN20
L4	8-bolts (flg width < 410mm)	RTN20
L5	8-bolts (flg width < 520mm)	RTN20
L6	8-bolts (flg width < 630mm)	RTN20

	Top joint connection	End truck
H4	12-bolts (flg width < 410mm)	RTN25
H5	12-bolts (flg width < 520mm)	RTN25
H7	12-bolts (flg width < 740mm)	RTN25
H9	12-bolts (flg width < 990mm)	RTN25
K4	12-bolts (flg width < 410mm)	RTN32, RTN40
K5	12-bolts (flg width < 520mm)	RTN32, RTN40
K7	12-bolts (flg width < 740mm)	RTN32, RTN40
K9	12-bolts (flg width < 990mm)	RTN32, RTN40
J1-J0	Shear ring connection	RTN40, RTN50

	Side joint	End Truck
R3	8- top & 2-side bolts	RTN20
R4	8- top & 2-side bolts	RTN20
R5	8- top & 2-side bolts	RTN20
R6	8- top & 2-side bolts	RTN20
F4	8- top & 4-side bolts	RTN25
F5	12- top & 4-side bolts	RTN25
F7	12- top & 4-side bolts	RTN25
F8	12- top & 4-side bolts	RTN25

	Side joint	End Truck
Q4	12- top & 4-side bolts	RTN32
Q5	12- top & 4-side bolts	RTN32
Q6	12- top & 6-side bolts	RTN32
Q7	12- top & 4-side bolts	RTN32
Q8	12- top & 6-side bolts	RTN32
Q9	12- top & 4-side bolts	RTN32
Q0	12- top & 6-side bolts	RTN32
S6	12- top & 6-side bolts	RTN40, RTN50B
S7	12- top & 6-side bolts	RTN40, RTN50B
S8	12- top & 6-side bolts	RTN40, RTN50B

14-17

0000

Bolt joint distance, mm

	The distance between the joint plates for a
####	double girder crane. It is measured from alignment pins.

	Dimension from drive wheel to joint plate pin when the
0000	joint plate is positioned asymmetrically for a single girder crane.

BT19

Buffer type

RTN/RTL09	A, B, C, K, G, E
RTN11	A, B, C, K, G, E
RTN14	A, B, C, D, K, G, E, M, F, H, P
RTN16	A, B, C, D, K, G, E, M, F, H, P
RTN20	A, B, C, D, K, G, E, M, F, H, P, I, S
RTN25	A, B, C, D, K, G, E, M, F, H, P, I, S

RTN32	B, C, D, K, G, E, M, F, H, P, I, S, T, Y
RTN40	B, C, D, K, G, E, M, F, H, P, I, S, T, Y
A, B, C, D	Rubber buffers
K, G, E, M, F	Polyurethane buffers
H, P, I, S, T, Y	Polyurethane buffers
0	No buffer included

19-22

0000

Bogie inner wheel distance, mm

0000	No bogie type end carriage

Color code

-	Standard primary paint

K	Standard finishing paint

Special properties

Standard

Special

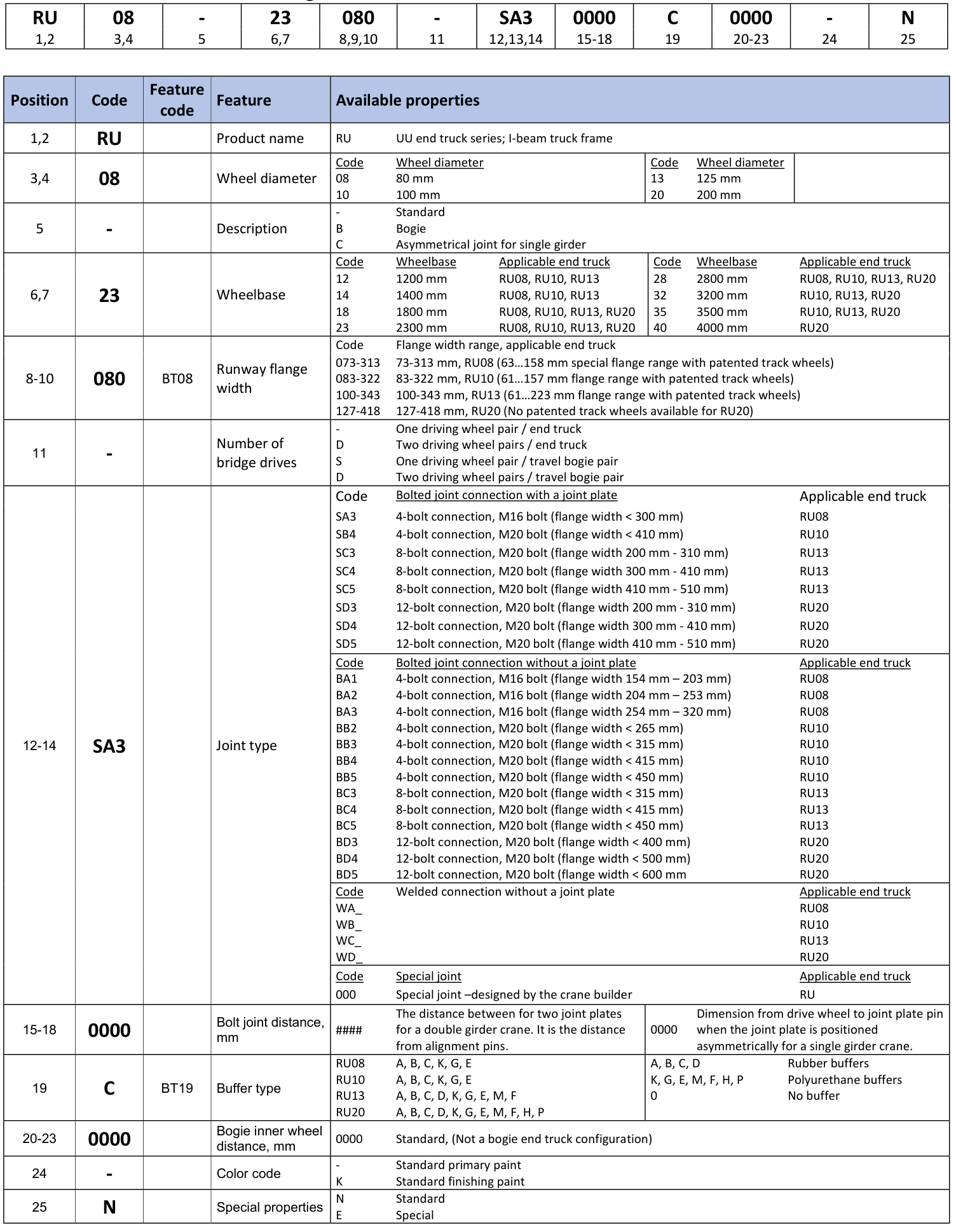

2.4 RU Under-running End Truck

RU	08	-	23	080	-	SA3	0000	C	0000	-	N
1,2	3,4	5	6,7	8,9,10	11	12,13,14	15-18	19	20-23	24	25

Position

Code

Feature code

Feature

Available properties

1,2

Product name

RU	UU end truck series; I-beam truck frame

3,4

Wheel diameter

Code	Wheel diameter
08	80 mm
10	100 mm

Code	Wheel diameter
13	125 mm
20	200 mm

Description

-	Standard
B	Bogie
C	Asymmetrical joint for single girder

6,7

Wheelbase

Code	Wheelbase	Applicable end truck
12	1200 mm	RU08, RU10, RU13
14	1400 mm	RU08, RU10, RU13
18	1800 mm	RU08, RU10, RU13, RU20
23	2300 mm	RU08, RU10, RU13, RU20

Code	Wheelbase	Applicable end truck
28	2800 mm	RU08, RU10, RU13, RU20
32	3200 mm	RU10, RU13, RU20
35	3500 mm	RU10, RU13, RU20
40	4000 mm	RU20

8-10

080

BT08

Runway flange width

Code Flange width range, applicable end truck
073-313 73-313 mm, RU08 (63…158 mm special flange range with patented track wheels)
083-322 83-322 mm, RU10 (61…157 mm flange range with patented track wheels)
100-343 100-343 mm, RU13 (61…223 mm flange range with patented track wheels)
127-418 127-418 mm, RU20 (No patented track wheels available for RU20)

Number of bridge drives

-	One driving wheel pair / end truck
D	Two driving wheel pairs / end truck
S	One driving wheel pair / travel bogie pair
D	Two driving wheel pairs / travel bogie pair

12-14

SA3

Joint type

Code	Bolted joint connection with a joint plate	Applicable end truck
SA3	4-bolt connection, M16 bolt (flange width < 300 mm)	RU08
SB4	4-bolt connection, M20 bolt (flange width < 410 mm)	RU10
SC3	8-bolt connection, M20 bolt (flange width 200 mm - 310 mm)	RU13
SC4	8-bolt connection, M20 bolt (flange width 300 mm - 410 mm)	RU13
SC5	8-bolt connection, M20 bolt (flange width 410 mm - 510 mm)	RU13
SD3	12-bolt connection, M20 bolt (flange width 200 mm - 310 mm)	RU20
SD4	12-bolt connection, M20 bolt (flange width 300 mm - 410 mm)	RU20
SD5	12-bolt connection, M20 bolt (flange width 410 mm - 510 mm)	RU20

Code	Bolted joint connection without a joint plate	Applicable end truck
BA1	4-bolt connection, M16 bolt (flange width 154 mm – 203 mm)	RU08
BA2	4-bolt connection, M16 bolt (flange width 204 mm – 253 mm)	RU08
BA3	4-bolt connection, M16 bolt (flange width 254 mm – 320 mm)	RU08
BB2	4-bolt connection, M20 bolt (flange width < 265 mm)	RU10
BB3	4-bolt connection, M20 bolt (flange width < 315 mm)	RU10
BB4	4-bolt connection, M20 bolt (flange width < 415 mm)	RU10
BB5	4-bolt connection, M20 bolt (flange width < 450 mm)	RU10
BC3	8-bolt connection, M20 bolt (flange width < 315 mm)	RU13
BC4	8-bolt connection, M20 bolt (flange width < 415 mm)	RU13
BC5	8-bolt connection, M20 bolt (flange width < 450 mm)	RU13
BD3	12-bolt connection, M20 bolt (flange width < 400 mm)	RU20
BD4	12-bolt connection, M20 bolt (flange width < 500 mm)	RU20
BD5	12-bolt connection, M20 bolt (flange width < 600 mm	RU20

Code Welded connection without a joint plate Applicable end truck
WA_	RU08
WB_	RU10
WC_	RU13
WD_	RU20

Code	Special joint	Applicable end truck
000	Special joint –designed by the crane builder	RU

15-18

0000

Bolt joint distance, mm

	The distance between for two joint plates
####	for a double girder crane. It is the distance from alignment pins.

	Dimension from drive wheel to joint plate pin
0000	when the joint plate is positioned asymmetrically for a single girder crane.

BT19

Buffer type

RU08	A, B, C, K, G, E
RU10	A, B, C, K, G, E
RU13	A, B, C, D, K, G, E, M, F
RU20	A, B, C, D, K, G, E, M, F, H, P

A, B, C, D	Rubber buffers
K, G, E, M, F, H, P	Polyurethane buffers
0	No buffer

20-23

0000

Bogie inner wheel distance, mm

0000	Standard, (Not a bogie end truck configuration)

Color code

-	Standard primary paint
K	Standard finishing paint

Special properties

N	Standard
E	Special

2.5 RH Under-running End Truck

RH	10	-	23	080	-	HB4	0000	C	0000	-	N
1,2	3,4	5	6,7	8,9,10	11	12,13,14	15-18	19	20-23	24	25

Position

Code

Feature code

Feature

Available properties

1,2

Product name

RH	UR end truck series; U-shape truck frame

3,4

Wheel diameter

Code	Wheel diameter
10	100 mm
13	125 mm
20	200 mm

Description

-	Standard
B	Bogie
C	Asymmetrical joint for single girder

6,7

Wheelbase

Wheelbase dimension		Applicable end truck
14	1400 mm	RH10, RH13
18	1800 mm	RH10, RH13, RH20
23	2300 mm	RH10, RH13, RH20
28	2800 mm	RH10, RH13, RH20
32	3200 mm	RH13, RH20
35	3500 mm	RH13, RH20
40	4000 mm	RH20

8-10

080

BT08

Runway flange width

Code	Flange width range, applicable end truck
083-322	83-322 mm, RH10 (61…157 mm flange range with patented track wheels)
100-343	100-343 mm, RH13 (61…223 mm flange range with patented track wheels)
127-418	127-418 mm, RH20 (No patented track wheels available for RH20)

Number of bridge drives

-	One driving wheel pair / end truck
D	Two driving wheel pairs / end truck
S	One driving wheel pair / travel bogie pair
D	Two driving wheel pairs / travel bogie pair

12-14

HB4

Joint type

Code	Bolted joint connection with a joint plate	Applicable end truck
HB4	4-bolt connection, M20 bolt (flange width < 410mm)	RH10
HC3	8-bolt connection, M20 bolt (flange width 200 mm - 310 mm)	RH13
HC4	8-bolt connection, M20 bolt (flange width 300 mm - 410 mm)	RH13
HC5	8-bolt connection, M20 bolt (flange width 410 mm - 510 mm)	RH13
HD3	16-bolt connection, M20 bolt (flange width 200 mm - 310 mm)	RH20
HD4	16-bolt connection, M20 bolt (flange width 300 mm - 410 mm)	RH20
HD5	16-bolt connection, M20 bolt (flange width 410 mm - 510 mm)	RH20

Code	Bolted joint connection without a joint plate	Applicable end truck
KB2	4-bolt connection, M20 bolt (flange width 216 mm - 265 mm)	RH10
KB3	4-bolt connection, M20 bolt (flange width 266 mm - 315 mm)	RH10
KB4	4-bolt connection, M20 bolt (flange width 316 mm - 415 mm)	RH10
KB5	4-bolt connection, M20 bolt (flange width 416 mm - 450 mm)	RH10
KC3	8-bolt connection, M20 bolt (flange width 266 mm – 347 mm)	RH13
KC4	8-bolt connection, M20 bolt (flange width 347 mm - 447 mm)	RH13
KC5	8-bolt connection, M20 bolt (flange width 447 mm - 500 mm)	RH13
KD3	16-bolt connection, M20 bolt (flange width 266 mm – 400 mm)	RH20
KD4	16-bolt connection, M20 bolt (flange width 400 mm - 500 mm)	RH20
KD5	16-bolt connection, M20 bolt (flange width 500 mm - 600 mm)	RH20

Code	Special joint	Applicable end truck
000	Special joint –designed by the crane builder	RH

15-18

0000

Bolt joint distance, mm

	The distance between for two joint
####	plates for a double girder crane. It is the distance from alignment pins.

	Dimension from drive wheel to joint plate pin
0000	when the joint plate is positioned asymmetrically for a single girder crane.

BT19

Buffer type

RH10	A, B, C, K, G, E
RH13	A, B, C, D, K, G, E, M, F
RH20	A, B, C, D, K, G, E, M, F, H, P

A, B, C, D	Rubber buffers
K, G, E, M, F, H, P	Polyurethane buffers
0	No buffer

20-23

0000

Bogie inner wheel distance, mm

0000	Standard, (Not a bogie end truck configuration)

Color code

-	Standard primary paint
K	Standard finishing paint

Special properties

N	Standard
E	Special

3 TRAVELING MACHINERIES PRODUCT CODE

3.1 GE Drive

GE	K	1	06	P	T	1	B	O	F06MA	200-6400	N
1,2	3	4	5,6	7	TG05 8	TG06 9	10	11	12-16	17-24	25

Pos.

Code

Feature code

Feature

Available properties

1,2

Gear

Type

K	Specific Trolley Drive (WRH)
L	Specific Trolley Drive (ECH)
M	Hollow shaft

S	Solid shaft
T	Reserved
N	Reserved

Machinery size (Torque Range)

1	0 Nm < T2 < 50 Nm
2	16 Nm < T2 < 125 Nm
3	40 Nm < T2 < 320 Nm

4	100 Nm < T2 < 800 Nm
5	250 Nm < T2 < 2000 Nm
6	630 Nm < T2 < 5000 Nm

5,6

Ratio code

01… 1st mark: 0, 1, 2 … 9, A (=10), B (=11)
...99… 2nd mark: 0, 1, 2 … 9
…H9 A0=100, B0=110, G5=165, etc.

Options

P	Standard, no options (plain)
F	Flywheel

G	Gantry type gear (RES4, RES5)
V	Stronger version (RES320V, RES316V, RES313V with MF06LB motor)

TG05

Secondary shaft type

T	Driving Pinion
K	Keyway
S	Spline

D	Spline + Plain
E	Reserved (Special)

TG06

Version type

1…9	Versioning of machinery spline size, shaft size

Color

B	B-Black (Dark grey)

Future reservation

O	No feature

12-16

F06MA

Motor type and size

F	Motor type code (B, F, T, etc.)
06	Frame size (06, 07…)
M	Stator length (S, M, L, Z, E)
A	Power code (A, B, C…)

17-24

200-6400

Motor ID-code

	ID of the motor, if special then Winding data and Power supply data: 200-6400
	(fourth mark, pos 20 “dash”)
200	Number of HS- and LS-pole-pairs
-	Filling mark “dash”
5	Power Supply frequency: 5-50Hz, 6-60Hz
400	Power supply Voltage, 380, 400, …

Order type

E	Special Order, details defined with P.O.
N	Normal Order (Standard Motor)

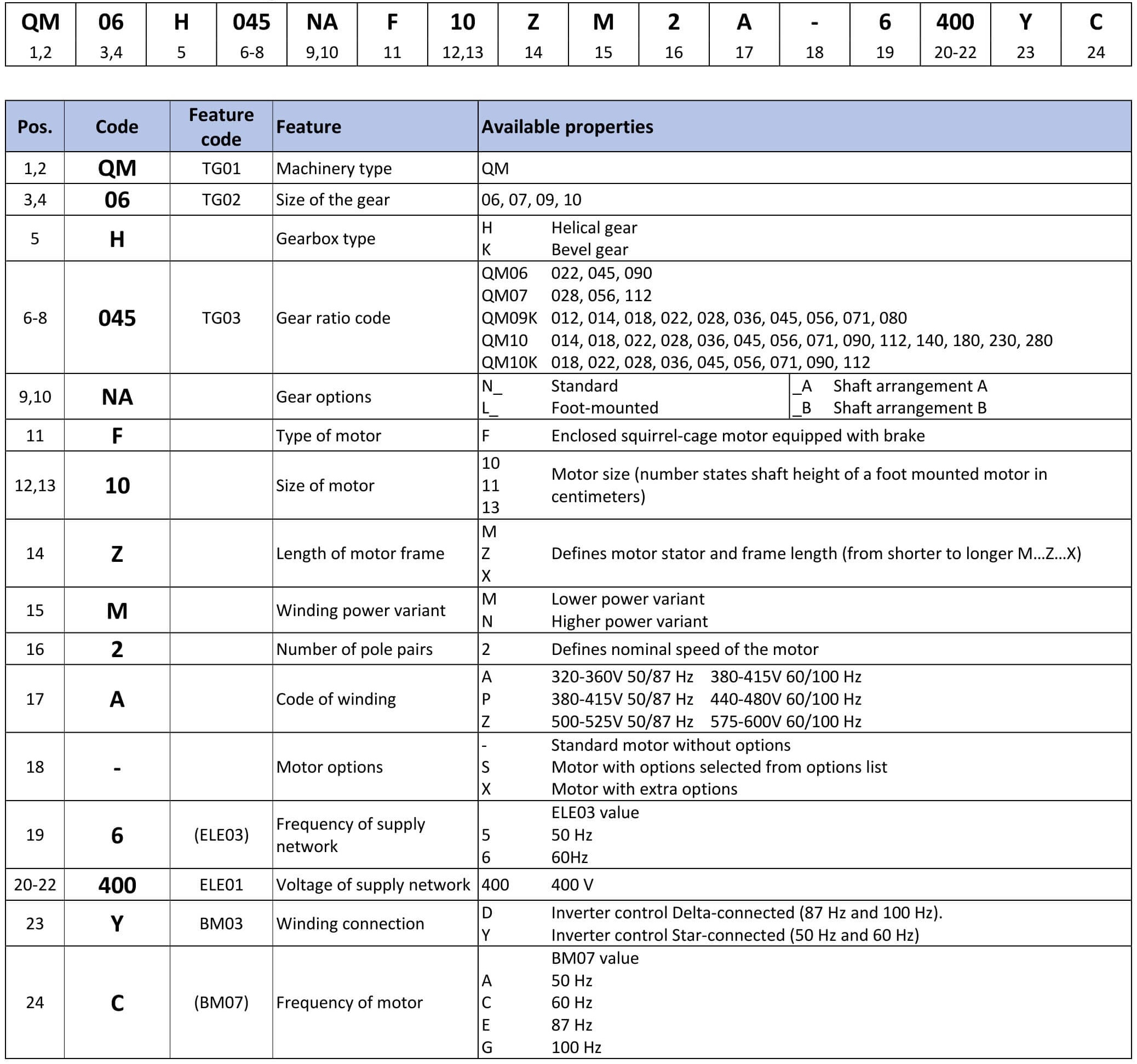

3.2 QM Bridge Drive

QM	06	H	045	NA	F	10	Z	M	2	A	-	6	400	Y	C
1,2	3,4	5	6-8	9,10	11	12,13	14	15	16	17	18	19	20-22	23	24

Pos.

Code

Feature code

Feature

Available properties

1,2

TG01

Machinery type

3,4

TG02

Size of the gear

06, 07, 09, 10

Gearbox type

H	Helical gear
K	Bevel gear

6-8

045

TG03

Gear ratio code

QM06 022, 045, 090
QM07 028, 056, 112
QM09K 012, 014, 018, 022, 028, 036, 045, 056, 071, 080
QM10 014, 018, 022, 028, 036, 045, 056, 071, 090, 112, 140, 180, 230, 280
QM10K 018, 022, 028, 036, 045, 056, 071, 090, 112

9,10

Gear options

N_	Standard
L_	Foot-mounted

_A	Shaft arrangement A
_B	Shaft arrangement B

Type of motor

F	Enclosed squirrel-cage motor equipped with brake

12,13

Size of motor

10
11	Motor size (number states shaft height of a foot mounted motor in
13	centimeters)

Length of motor frame

M
Z	Defines motor stator and frame length (from shorter to longer M…Z…X)
X

Winding power variant

M	Lower power variant
N	Higher power variant

Number of pole pairs

2	Defines nominal speed of the motor

Code of winding

A	320-360V 50/87 Hz 380-415V 60/100 Hz
P	380-415V 50/87 Hz 440-480V 60/100 Hz
Z	500-525V 50/87 Hz 575-600V 60/100 Hz

Motor options

-	Standard motor without options
S	Motor with options selected from options list
X	Motor with extra options

(ELE03)

Frequency of supply network

	ELE03 value
5	50 Hz
6	60Hz

20-22

400

ELE01

Voltage of supply network

400

400 V

BM03

Winding connection

D	Inverter control Delta-connected (87 Hz and 100 Hz).
Y	Inverter control Star-connected (50 Hz and 60 Hz)

(BM07)

Frequency of motor

	BM07 value
A	50 Hz
C	60 Hz
E	87 Hz
G	100 Hz

4 POWER SUPPLY PACKAGE PRODUCT CODE

4.1 Electrification Package – Spacemaster® SX / SXR WRH and LR/LK ECH

QQ	S	M	S	1	2	L	6	B	P3	76	105	-
1,2	3	4	5	6	7	8	9	10	11,12	13,14	15-17	18

Pos.

Code

Feature code

Feature

Available properties

1,2

Crane layout

QQ Rope hoist, crane with moveable pendant
QM Rope hoist, monorail system

XQ	Chain hoist crane
XM	Chain hoist, monorail system

Type of power supply

S	Festoon cable
C	Conductor rails

E	NRGmaster (Energy chain electrification system; requires radio controls)

Power supply for

C	Crane
M	Hoist/trolley and pushbutton pendant

H	Hoist
P	Pushbutton pendant

BT03

Crane type

S	Single girder, top running
U	Single girder, under running
D	Double girder

C	Compact crane
M	Monorail hoist

Number of hoists

1	1 hoist/bridge
2	2 hoist/bridge

3	3 hoist/bridge

(GE09)

Hoist frame size

		GE09 value
0	SX1	Z
1	SX2/SX3/SXR3	A
2	SX4/SXR5	B
3	SX5/SXR10	C

		GE09 value
4	SX6	D
5	SX7	E
7	Electric chain hoist frame size 10, 16, 25

DES01

Trolley type

L	Low headroom trolley
H	Double girder trolley (high connection)
M	Double girder trolley (medium connection)
W	Double girder trolley (low connection)
N	Normal headroom trolley

F	Fixed hoist
J	Special low headroom trolley
V	Machinery hoist
X	Special trolley

(GE16)

Main girder height

1…9 Height 100…900mm, 400 mm = 4
Note: Monorail = 9 -> Height > 900 mm
X Height > 900 mm

GE16 value = 100…900

(DIM03)

Flange width (B-measure)

0	Double girder trolleys	C	380…529 mm
A	80…229 mm	D	530…690 mm
B	230…379 mm

DIM03 value = 80 (mm)

11,12

(HM01)
(HM02)

Hoisting motor type/size

	Hoisting motor type
P	Pole change motor 6:1 (rope hoist)
T	Inverter-duty motor (SX hoist)
A	ASR inverter-duty motor (SX hoist)
S	ESR Inverter-duty motor – closed loop (rope hoist)
W	ESR Inverter-duty motor – open loop (SXR hoist)
R	Pole change motor 3:1 (SX hoist)
C	Cast iron pole change motor (SX hoist)
E	Ex-proof pole change motor (rope hoist)
O	Single speed motor (rope hoist)
1	Two-speed motor (chain hoist)
2	Single speed motor (chain hoist)
3	Inverter-duty motor (chain hoist)
4	Two-speed motor (chain hoist)
-	Undefined

	Hoisting motor size
X	Nom. power 1.5 kW / 50 Hz
1	Nom. power 1.8 kW / 50 Hz
Z	Nom. power 2.5 kW / 50 Hz
2	Nom. power 3.6 kW / 50 Hz
3	Nom. power 4.5 kW / 50 Hz
4	Nom. power 7.5 kW / 50 Hz
5	Nom. power 9 kW / 50 Hz
6	Nom. power 15 kW / 50 Hz
7	Nom. power 18 kW / 50 Hz
8	Nom. power 23 kW / 50 Hz
9	Nom. power 28 kW / 50 Hz
A	Nom. power 35 kW / 50 Hz
B	Chain hoist: Nom. Power 0.5 kW / 50Hz
A	Chain hoist: Nom. Power 1.0 kW / 50Hz
F	2 x 15 kW = 30 kW (MF13)
H	2 x 18 kW = 36 kW (MF13)
J	2 x 23 kW = 44 kW (MF13)
K	2 x 28 kW = 56 kW (MF13)
-	Undefined

13,14

(ELE01)

Main voltage range

20	50 Hz: (U/10) - 20, Ex. (400 V / 10) - 20 = 20
76	60 Hz: (U/10) + 30, Ex. (460 V / 10) + 30 = 76

e.g. ELE01 value = 400 (V)

15-17

105

DIM18

Span/length of runway

DIM18 value
095 9.5 m
105 10.5 m

Special properties

-	Standard
E	Special

4.2 Electrification Package – Spacemaster® SXL WRH

UC	S	M	D	1	9	M	X	0	YC	76	105	-
1,2	3	4	5	6	7	8	9	10	11,12	13,14	15-17	18

Pos.

Code

Feature code

Feature

Available properties

1,2

PS46

Crane layout

UC	C-rail festoon for SXL hoist
UI	I-beam festoon for SXL hoist

PS01/PS02

Type of power supply

S	Festoon - Flat cables
C	Conductor rails

Power supply for

C	Crane
M	Hoist/trolley, and pushbutton pendant
H	Hoist

BT03

Crane type

D	Double girder

Number of hoists

1	1 hoist/bridge
2	2 hoist/bridge

(GE09)

Hoist frame size

Without crane service platform GE09 value
	UM17
	UM18
9 SXL / PDW hoist	UM19 UM20

With crane service platform
		GE09 value
OTH03 - YES
		UM17
		UM18
F	SXL hoist	UM19 UM20

DES01

Trolley type

M	Double girder trolley (medium connection)

X	Special trolley

(GE16)

Main girder height

1…9	Height 100…900mm, e.g. 400 mm = 4
X	Height > 900mm

e.g. GE16 value = 100…900

(DIM03)

Flange width (B-measure)

0	Double girder trolleys

11,12

(HM17)
(HM18)

Hoisting motor type/size

HM17 Hoisting motor type
Y	Hoist motor connection type
D	Hoist motor connection type
-	Undefined

HM1 Hoisting motor size
8	MF13XR200
B	MF16ZR200
C	MF18XR200
D	MF22LR200
E	Undefined
-

13,14

(ELE01)

Main voltage range

	50 Hz: (U/10) - 20, example (400 V / 10) - 20 =
20	20
76	60 Hz: (U/10) + 30, example (460 V / 10) + 30 = 76

e.g. ELE01 value = 400 (V)

15-17

105

DIM18 /
DIM13

Span/length of runway

	DIM18 / DIM13 value
095	9.5 m
105	10.5 m

Special properties

-	Standard
E	Special

5 CONTROL PANEL PRODUCT CODE

5.1 Bridge Panel for Wire Rope Hoist Crane Package

BP	P	2	-	2	2	2	4	V3	-	20	H	0
1-6	(HM01) 7	(HM02) 8	9	10	(TR01) 11	(BT01) 12	13	PE13 14-15	16	(ELE01) 17-18	(ELE02) 19	20

Pos.

Code

Feature code

Feature

Available properties

1-6

Product name

BP Spacemaster SX wire rope hoist (Q hoist)
BCR Spacemaster SXL wire rope hoist (UM hoist)

(HM01)

Hoist motor type

	Spacemaster SX wire rope hoist HM01
P	Pole-change motor 6:1 speed	P
A	ASR inverter-duty motor	A
S	ESR inverter-duty motor	S
T	Frequency converter motor	T
R	Pole change motor 3:1 speed	R
C	Cast iron pole-change motor	C
E	Ex-proof pole-change motor	E
O	Single speed motor	O

	Spacemaster SXL wire rope hoist HM017
Y	Hoist motor connection type Y
D	Hoist motor connection type D

(HM02)

Motor power

	Spacemaster SX wire rope hoist HM02
X	1.5 kW / 50 Hz	X
1	1.8 kW / 50 Hz (MF10)	1
Z	2.5 kW / 50 Hz	Z
2	3.6 kW / 50 Hz (MF10)	2
3	4.5 kW / 50 Hz (MF10)	3
4	7.5 kW / 50 Hz (MF11)	4
5	9 kW / 50 Hz (MF11)	5
6	15 kW / 50 Hz (MF13)	6
7	18 kW / 50 Hz (MF13)	7
8	23 kW / 50 Hz (MF13)	8
9	28 kW / 50 Hz (MF13)	9

	Spacemaster SX wire rope hoist HM02
A	35 kW / 50 Hz (MF13)	A
F	2 x 15 kW = 30 kW (MF13)	F
H	2 x 18 kW = 36 kW (MF13)	H
J	2 x 23 kW = 44 kW (MF13)	J
K	2 x 28 kW = 56 kW (MF13)	K

		HM18
	Spacemaster SXL wire rope hoist
		value
B	MF13XR200	B
C	MF16ZR200	C
D	MF18XR200	D
E	MF22LR200	E

Number of hoists on the bridge

(TR01)

Trolley travel control

		TR01 value
1	1-speed	1SP
2	2-speed	2SP
C	CM Elite mounted in bridge panel D2C
D	CM Elite mounted on trolley	D2C

		TR01 value
M	CM EDGE located in bridge panel	TDU
N	CM EDGE mounted on trolley	TDU
Q	CMXC / CM NXT mounted on trolley	DYD

(BT01)

Bridge travel control

		BT01 value
1	1-speed	1SP
2	2-speed	2SP
C	CM Elite VFD	D2C
M	CM EDGE	TDU

		BT01 value
M	CM Select VFD	D2M
M	CM LDR VFD	TDN
Q	CMXC VFD	DYD
Q	CM NXT VFD	TMK

Panel size

4	Height 400 mm, depth 250 mm (EEC) *
6	Height 600 mm, depth 250 mm (EEF) *

A	Height 1000 mm, depth 350 mm (KA220)
B	Height 1500 mm, depth 250 mm (H15)

14-15

PE13

Selection of the hoists

V2	Selection I or II, two hoists controlled independently (I, II)
V3	Selection I, I+II, II, two hoists controlled independently or simultaneously (I+II)

00	Without selection
VE	Special selection

17-18

(ELE01)

Main voltage

20	50 Hz: (Main voltage / 10) – 20 e.g. (400 V/ 10) – 20 = 20
76	60 Hz: (Main voltage / 10) + 30 e.g. (460 V/ 10) + 30 = 76

Ex. ELE01 value = 400 (V)

(ELE02)

Control voltage

		ELE02 value
H	48 V	48
J	115 V	115

		ELE02 value
N	230 V	230

System features

0	Standard BP

E	Special application

5.2 Bridge Panel for Electric Chain Hoist Crane Package

BP	1	1	-	1	Q	Q	4	00	-	76	J	0
1-6	(HM01) 7	(HM02) 8	9	10	(TR01) 11	(BT01) 12	13	PE13 14,15	16	(ELE01) 17,18	(ELE02) 19	20

Pos.

Code

Feature code

Feature

Available properties

1-6

Product name

BP R&M

(HM01)

Hoist motor type

		HM01 value
1	Two-speed motor	1
2	Single-speed motor (not used)	2
3	Inverter-duty motor	3

(HM02)

Motor power

	HM02 value
C	1.0 kW / 1.3 hp / 60 Hz, C1/V1 motor	C
1	2.1 kW / 2.8 hp / 60 Hz, C2/V2 motor	1
3	4.2 kW / 5.6 hp / 60 Hz, C3/V2 motor	3

Hoist Model – Motor type (two-speed/inverter)
LR05 – C1/V1 motor
LR10 – C2/V2 motor
LK16 – C3/V3 motor
LK25 – C3/V3 motor

Number of hoists on the bridge
1 – one hoist on bridge

(TR01)

Trolley travel control

		TR01 value
N	Freq. control D2M mounted on trolley	D2M
Q	CM EDGE mounted to trolley motor	TDU

(BT01)

Bridge travel control

		BT01 value
1	1-speed	1SP
2	2-speed	2SP
M	CM EDGE	TDU

		BT01 value
M	CM LDR	TDN
Q	CMXC VFD	DYD
Q	CM NXT VFD	TMK

Panel size

4	Height 400 mm, depth 250 mm (EEC) *
6	Height 600 mm, depth 250 mm (EEF) *

A	Height 1000 mm, depth 350 mm (KA220) *

14,15

PE13

Selection of the hoists

V2 Selection I or II, two hoists controlled
independently.
V3 Selection I, I+II, II, two hoists controlled
independently or simultaneously (I+II)

00	Without selection
VE	Special selection

17,18

(ELE01)

Main voltage

20 50 Hz: (Main voltage / 10) – 20 e.g. (400 V/ 10) – 20 = 20
76 60 Hz: (Main voltage / 10) + 30 e.g. (460 V/ 10) + 30 = 76
53 60 Hz: (Main voltage / 10) + 30 e.g. (230 V/ 10) + 30 = 53

Ex. ELE01 value = 400 (V)

(ELE02)

Control voltage

		ELE02 value
H	48 V	48
J	115 V	115

		ELE02 value
N	230 V	230

System features

0	Standard BP

E	Special application

6 CONTROL SYSTEM PRODUCT CODE

6.1 PRQ Push Button Pendant

PRQ	06	2	2	2	0	C	00	-N	092	PE3	0	0
1-3	(PE11) 4,5	6	7	8	PE12 9	(ELE44) 10	PE13 11,12	13,14	15-17	ELE16 18-20	21	22

Pos.

Code

Feature code

Feature

Available properties

1-3

PRQ

GE01

Product name/Brand

PRQ	POQ pushbutton pendant series

4,5

(PE11)

Pendant housing type

Code		PE11
02	Housing with 2 holes for buttons	POQ02
04	Housing with 4 holes for buttons	POQ04
06	Housing with 6 holes for buttons	POQ06
10	Housing with 10 holes for buttons	POQ10
	All PRQ models have Emergency stop button as standard

Hoisting control type

2	2-step push button
1	1-step push button

0	Without hoisting buttons

Trolley travel control type

2	2-step push button
1	1-step push button

0	Without trolley travel buttons

Bridge travel control type

2	2-step push button
1	1-step push button

0	Without bridge travel buttons

PE12

Main contactor button function

0	No main contactor button
	All PRQ models have Emergency stop button as standard

(ELE44)

Direction symbols

		ELE44
D	DIN and FEM standard	DIN
F	SFS standard (Finnish)	FIN
C	ANSI standard (compass)	ANSI

		ELE44
L	English letters	ENG
E	Special symbols	NONSTD

11,12

PE13

Hoist selection switch function

00	Without selection
V2	Selection I or II, two hoists controlled independently.
V3	Selection I, I+II, II, two hoists controlled independently or simultaneously (I+II)

VE	Special selection

13,14

-N

Aux device mounting

-N	No extra buttons
-Y	Extra buttons

15-17

092

Rising cable length

Length is given from the bottom of the P.B. housing to the festoon C-rail

092	9.2 m
135	13.5 m

000 Without cable
etc.

18-20

PE3

ELE16

Pendant cable top connector

PE1	Connector connected to the bridge panel (for back-up use)
PE2	Connector connected to the hoist panel (monorail wire rope hoist hoists)
PE3	Connector connected to the festoon (moveable pendant)
000	Without connector

(PE21)

Magnet

0	No magnet for pendant housing

		PE21
M	Magnet for pendant housing	YES

System features

0	Standard - no special features

E	Special features

6.2 PD Push Button Pendant

PD	12	-	2	2	2	2	N	D	V3	-	092	P	0
1,2	3,4	5	6	7	8	PE12 9	PE15 10	(ELE44) 11	PE13 12,13	14	(PEN02) 15-17	(ELE16) 18	19

Pos.

Code

Feature code

Feature

Available properties

1,2

Product name

PENDAX pushbutton series

3,4

Type of housing

04	Housing with 4 holes for buttons on front
06	Housing with 6 holes for buttons on front

08	Housing with 8 holes for buttons on front
12	Housing with 12 holes for buttons on front

Hoisting control type

1	1-step push-button
2	2-step push-button

0	Without hoisting buttons

Trolley travel control type

1	1-step push-button
2	2-step push-button

0	Without trolley travel buttons

Bridge travel control type

1	1-step push-button
2	2-step push-button

0	Without bridge travel buttons

PE12

Main contactor on button

1	Push-button for main contactor energizing
2	Push-button for main contactor energizing and horn

0	Without push-button for main contactor energizing and horn

PE15

Emergency stop

N	Normal mushroom button

K	Mushroom button with key for releasing

(ELE44)

Symbols

		ELE44
D	DIN standard	DIN
F	Finnish standard	FIN
S	Swedish standard	SEN

		ELE44
C	ANSI standard	ANSI
L	English letters	ENG
E	Special symbols	SPEC

12,13

PE13

Selection of the hoists

V2	Selection I or II, operate independently.
V3	Selection I, I+II, II operate independently or simultaneously

00	Without selection
VE	Special selection

15-17

092

(PEN02)

Rising cable length

092 9.2 meters
135 13.5 meters etc.
000 Without cable

Length is given from the bottom of the P.B. housing EITHER to the
festoon C-rail (in case of moveable pendant) OR to the bottom of the
hoist panel (in case of monorail hoist)

(ELE16)

Connector on the top of the rising cable

		ELE16
P	Plug connector for festoon cable, PE3
	(Moveable pendant)
0	Without connector	000

		ELE16
H	Connected to the hoist panel (monorail hoist)	PE2
B	Connected to bridge panel (for back-up use)	PE1

System features

0	Standard PD

E	Special application

6.3 PXR Push Button Pendant (Hazardous location)

PX	R	08	2	2	2	2	N	C	00	-	092	0	0
1,2	GE01 3	(PE11) 4,5	6	7	8	PE12 9	PE15 10	(ELE44) 11	PE13 12,13	14	15-17	ELE16 18	19

Pos.

Code

Feature code

Feature

Available properties

1,2

Product name

PX	Pendant for Class I, Division 2, Group C and D

GE01

Brand

R&M

4,5

(PE11)

Pendant housing type

		PE11 value
06	6 button housing (2-motions)	PXQAW06
08	8 button housing (3-motions)	PXQAW08

Hoisting control type

2	2-step push button
1	1-step push button

0	Without hoisting buttons

Trolley travel control type

2	2-step push button
1	1-step push button

0	Without trolley travel buttons

Bridge travel control type

2	2-step push button
1	1-step push button

0	Without bridge travel buttons

PE12

Main contactor button function

2	Main contactor + horn, push-button energizing the main contactor and horn at the same time

PE15

Emergency stop

N	Normal mushroom button

(ELE44)

Direction symbols

		ELE44 value
C	ANSI standard (compass)	ANSI

12,13

PE13

Hoist selection switch function

V2	Two-position selector switch (I, II)

00	Without selector switch

Aux device mounting

-	No auxiliary device

15-17

092

Rising cable length

Examples:

092 9.2 m
135 13.5 m

000 Without cable
etc.

ELE16

Pendant cable top connector

0	Without connector

System features

Standard

E	Special application

6.4 RaCon Radio Control

RaCon	416	MI	0	S	0	TD	RP	CE	00	ST
1-5	REM10 6-8	REM11 9,10	11	12	13	(ELE44) 14,15	(ELE02) 16,17	REM12 18,19	REM13 20,21	22,23

Pos.

Code

Feature code

Feature

Available properties

1-5

RaCon

Product name

RaCon

R&M brand name for REMOX

6-8

416

REM10

Receiver

510 8 relay outputs – for monorail hoists only
416 16 relay outputs – for cranes
524 24 relay outputs - for cranes

736 36 relay outputs – for cranes
770 100 relay outputs – for cranes

9,10

REM11

Transmitter

QU	max. 8 pcs. 2-step pushbuttons for 3 motions, light, horn, use with receiver 510 or 512
MI	max. 10 pcs. 2-step pushbuttons for 3 motions, light, horn, suitable for receiver 510 or 516
M3	max. 10 pcs. 2-step pushbuttons and 5 step rotary switches, display for CID, suitable for receiver 516 or 524
E2	2 pcs. 2-step joysticks for 3 motions, light, horn (standard joystick), suitable for receiver 510, 512 or 516
SP	2pcs. 2-step joysticks for 3 motions, light, horn (advanced joystick), suitable for receiver 510, 512, 516, 524 or 736
S2	2 pcs. 2-step joysticks for 3 motions, light, horn, display for CID (adv. joystick), suitable for receiver 516, 524 or 736
SA	2 pcs. analogue joysticks for 3 motions, light, horn, suitable for receiver 736
SN	2 pcs. analogue joysticks for 3 motions, light, horn, display for CID, suitable for receiver 736
I2	Pushbutton, CANopen
IC	Joystick, CANopen
IP	Joystick, ProfiBus

Infra-key system

I	Included
0	Not included

Hoist selector switch

		REM19 Value
S	Incl. with 3 positions (I, I+II, II)	V3
T	Incl. with 2 positions (I, II)	V2
B	Incl. With 3 positions (I, II, III)	S3

		REM19 Value
A	3 positions (I, I+II, II) + Main VM
	Aux switch
K	7 positions (I, II, III, I+II, II+III, I+II+III)	V7
0	Not included	-

Auxiliary device

A	Included (1 x ON, 2 x OFF)
0	Not included

14,15

(ELE44)

Direction symbols

		ELE 44 value
TD	DIN and FEM standard	DIN
TF	SFS standard	FIN
TS	SIS standard	SEN

		ELE 44 value
TC	ANSI standard (compass) ANSI
TL	English letters	ENG
SS	Special symbols	SPEC

16,17

(ELE02)

Receiver power supply

		ELE02 value
RP	48 V, 50/60 Hz	48
RT	115 V, 50/60 Hz	115

		ELE02 value
RV 230 V, 50/60 Hz	230
RX 48-230 V, 50/60 Hz

18,19

REM12

Charger type

CE	230 V, 50/60 Hz euro plug
CB	230 V, 50/60 Hz wires for local plug

CU 115 V, 50/60 Hz USA plug

20,21

REM13

Tandem operation

00	No tandem operation
T1	Single transmitter **)
T2	Dual transmitter **)

TM Master transmitter **)
TS Slave transmitter
CR Catch / Release

22,23

System features

ST Standard RaCon system
S2 Standard RaCon system plus a spare transmitter
Standard RaCon system with Sway Control
SW Standard RaCon system with Sway Control and
W2 spare transmitter

SP	Special application
P2	Special application plus a spare transmitter
	Special application with Sway Control
SS	Special application with Sway Control and
C2	spare transmitter

6.5 RaCon ARC Radio Control

ARC	ARCH11	T8C	I	S	0	A	1	1	0
1-3	REM10 4-9	REM11 10-12	REM18 13	14	15	(ELE44) 16	(OTH55) 17	UL approval 18	(Not used) 19

Pos.

Code

Feature code

Feature

Available properties

1-3

ARC

Product name

ARC

4-9

ARCH11

REM10

Receiver

11 function output relays (5A / 250 VAC), 2 stop relays (5A / 250 VAC)

10-12

T8C

REM11

Transmitter

T8B	Lithium ion (rechargeable battery)
T8C	AAA battery

REM18

Antenna

I	Internal
E	External (if receiver is mounted inside control panel)

Interface

Standard

Relay expansion

0	No
1	Yes

(ELE44)

Direction symbols

		ELE 44 value
D	DIN and FEM standard	DIN
S	SFS standard	FIN
A	ANSI standard (compass)	ANSI

(OTH55)

Orientation of direction symbols

		OTH55 value
1	Forward or North in direction 1	1
2	North in direction 2	2
3	Forward or North in direction 3	3
4	North in direction 4	4
X	Undefined	-

(EL04)

UL approval

0	No UL approval
1	cULus approval

(not used)

7 INVERTER PRODUCT CODE

7.1 ControlMaster™ EDGE

CMEDGE	004	E	1	0	0
1-6	7-9	10	11	12	13

Pos.

Code

Feature code

Feature

Available properties

1-6

CM EDGE

(HS01)
(TR01)
(BT01)

Device name

TDU

HS01 Type of hoist control
TR01 Type of trolley travel control
BT01 Type of bridge travel control

7-9

004

(ELE83)
(ELE84)
(ELE85)

Power rating class

004, 009, 017, 028, 045

ELE83 Hoisting inverter power rating
ELE84 Trolley travel inverter power rating
ELE85 Bridge travel inverter power rating
Values are composed of two features: power
rating class and supply voltage. E.g 004E =
ELE83/ELE84/ELE85 value.

(ELE83)
(ELE84)
(ELE85)

Supply voltage

E	380 – 480 VAC, 50/60 Hz

(ELE02)

Option board

0	No digital input option board (Fieldbus)
1	Digital input option board, 48-230 VAC
2	Digital input option board, 24 VDC

Reserved

Reserved for future use

Reserved

Reserved for future use

7.2 ControlMaster™ NXT

CMNXT	003	E	T	XX	0	W	M	M
(TR01) 1-5	(ELE84) 6-8	(ELE84) 9	(ELE02) 10	11,12	13	14	15	16

Pos.

Code

Feature code

Feature

Available properties

1-5

CMNXT

(TR01)
(BT01)

Device name

Branded Name

TR01 Type of trolley control
BT01 Type of bridge control

ControlMaster™ NXT

Value for feature code is TMK

6-8

003

(ELE84)
(ELE85)

Power rating class

003
006

3 kW
6 kW (Discontinued)

ELE84 Trolley inverter power rating
ELE85 Bridge inverter power rating
Values are composed of two features,
Power rating class and Supply voltage.

(ELE84)
(ELE85)

Supply voltage

380 – 480VAC, 50/60 Hz

(ELE02)

Control voltage

Y
P
T
V

42VAC, 50/60 Hz
48VAC, 50/60 Hz
115VAC, 50/60 Hz
230VAC, 50/60 Hz

ELE02 Control voltage for input

11,12

Revision code

The latest revision may differ.

Braking resistor type

0	No resistor (only 003 power rating)
B	External braking resistor (only 006 power rating)

Mounting

W	Wall mounting

EMC level

M	Modifiable

Option board

M	Modifiable

7.3 ControlMaster™ LDR

CMLDR	004	E	T	10	0	W	M	0
(TR01) 1-5	(ELE84) 6-8	(ELE84) 9	(ELE02) 10	11,12	13	14	15	16

Pos.

Code

Feature code

Feature

Available properties

1-5

CMLDR

(TR01)
(BT01)

Device name

Branded Name

TR01 Type of trolley control
BT01 Type of bridge control

ControlMaster™ LDR

TR01/BT01 = TDN

6-8

004

(ELE84)
(ELE85)

Power rating class

004
007
011
020
034

4 kW
7 kW
11 kW
20 kW
34 kW

ELE84 Trolley inverter power rating
ELE85 Bridge inverter power rating
Values are composed of two features,
Power rating class and Supply voltage.

(ELE84)
(ELE85)

Supply voltage

380 – 480VAC, 50/60 Hz

(ELE02)

Control voltage

Y
P
T
V

42VAC, 50/60 Hz
48VAC, 50/60 Hz
115VAC, 50/60 Hz
230VAC, 50/60 Hz

ELE02 Control voltage for input

11,12

Revision code

The latest revision may differ.

Braking resistor type

0	External braking resistor

Mounting

W	Wall mounting
1	Through plate flange mounting

EMC level and grounding

M	Modifiable (ground → non-ground)

Option board

0	Modifiable

7.4 ControlMaster™ Aspire

CMAspire	012	E	T	10	B	W	M	M
(HS01) 1-9	(ELE83) 10-11	(ELE83) 12	(ELE02) 13	14,15	16	17	18	19

Pos.

Code

Feature code

Feature

Available properties

1-9

CMAspire

(HS01)

Device name

Branded Name

HS01 Type of hoist control

ControlMaster™ Aspire

HS01 = TMV

10-11

012

(ELE83)

Power rating class

006
012

6 kW (A3 hoist motor)
12 kW (A5 hoist motor)

ELE83 Hoisting inverter power rating
Values are composed of two features,
Power rating class and Supply voltage.

(ELE83)

Supply voltage

380 – 480 VAC, 50/60 Hz

(ELE02)

Control voltage

Y
P
T
V

42VAC, 50/60 Hz
48VAC, 50/60 Hz
115VAC, 50/60 Hz
230VAC, 50/60 Hz

ELE02 Control voltage for digital input

14,15

Revision code

The latest revision may differ.

Braking resistor type

Mounting

W	Wall mounting

EMC level

M	Modifiable

Option board

M	Modifiable

7.5 ControlMaster™ Elite

CMEH	007	F	T	XX	A	0	0	0	L
(HS01) (TR01/BT01) 1-4	(ELE83) (ELE84/ELE85) 5-7	(ELE83) (ELE84/ELE85) 8	(ELE02) 9	10,11	12	13	ELE97 14	15	16

Pos.

Code

Feature code

Feature

Available properties

1-4

CMEH
CMET

(HS01)
(TR01/BT01)

Device name

CMEH	Hoisting inverter	D2H
CMET	Travelling inverter	D2C

HS01 Type of hoist control (D2H)
TR01 Type of trolley control (D2C)
BT01 Type of bridge control (D2C)

5-7

007

(ELE83)
(ELE84)
(ELE85)

Power rating class

002 - 132

ELE83 Hoisting inverter power rating
ELE84 Trolley inverter power rating
ELE85 Bridge inverter power rating
ELE83, ELE84, ELE85 values are
composed of two features,
Power rating class and Supply voltage.
e.g., 007F = ELE83/84/85 value

(ELE83)
(ELE84)
(ELE85)

Supply voltage

F	380 – 500VAC, 50/60 Hz

(ELE02)

Control voltage

		ELE02 value
Y	42VAC, 50/60 Hz
P	48VAC, 50/60 Hz	48
T	115VAC, 50/60 Hz	115
V	230VAC, 50/60 Hz	230

10,11

Revision code

The latest revision may differ.

Braking resistor type

A	External resistor
B	Internal resistor (included only CMET up to 015F)

Mounting

0	Standard panel

ELE97

EMC level

0	Unlimited (non-EU area or non-grounded network)
N	Limited (EU area, grounded network)

Boards

		Reserved board slots
0	Standard	A, B, D
1	Standard with speed supervision	A, B, C, D
2	Profibus	A, B, D, E
3	Profibus with speed supervision	A, B, C, D, E
8	Relay	A, B, D, E
9	Relay with speed supervision	A, B, C, D, E

Special

0	None
L	Varnished boards

8 ELECTRIC CHAIN HOIST PRODUCT CODE

8.1 Stagemaker® SR Concert Hoist

SR	05	B	04	1	050	4	U	-	206	C	B	020
1,2	3,4	5	6,7	8	9-11	12	13	14	15	20	21	22-24

Position

Code

Feature

Available Properties

1,2

Brand

STAGEMAKER Concert Hoist

3,4

Body size

Code
02
05

Code
10
25

Configuration

Code
A – Direct control
B – Control
S - Single-phase

6,7

Hoist speed

Code
02
04
08
16

60 Hz (fpm)	60 Hz m/min	50 Hz m/min
8	2.4	2
16	4.8	4
32	9.6	8
64	19.2	16

Chain fall

1
2

1-fall
2-fall

9,10,11

050

Capacity

Code
012
025
050
100
160
200
250

Ton	Kg
1/8	125
¼	250
½	500
1	1000
1 ½	1600
2	2000
2 ½	2500

Duty cycle

Code
3
4
5
6

ISO
M3
M4
M5
M6

Body position

Body up
Body down

U
D

14-16

(Empty)

17-19

206

Power supply

Code
206
236
466

Voltage – 60 Hz
208V
230V
460V

Electrics

Code
C
E

CSA
IEC

Control voltage

Code
A
B
C
C

48VAC
115VAC
230VAC
ACF

22-25

020

Height of lift - meter

20 meters

8.2 LK Electric Chain Hoist

LK	10	08	1	200	M5	2SP	080	N	120	466	C	B	20
1,2	3,4	5,6	7	8-10	11,12	13-15	16-18	19	20-22	23-25	26	27	28,29

Position

Code

Feature

Available Properties

1,2

Brand

LK electric chain hoist

FL/K

3,4

Body size (GE09)

Code
02
05
10
16
25

Available chain fall
1-fall
1-fall
1-fall or 2-fall
1-fall or 2-fall
1-fall or 2-fall

5,6

Hoist speed (SPD03)

Code
04
08
16

fpm – 60 Hz
16 fpm
32 fpm
64 fpm

m/min – 60 Hz
4.8 m/min
9.6 m/min
19.2 m/min

Chain fall (DES27)

Code
1
2
3

Description
1-fall
2-fall
3-fall

8-10

050

Capacity (LOA01)

Code	Kg / ton
012	125 / 1/8
025	250 / ¼
050	500 / 1/2

Code	Kg / ton
100	1000 / 1
160	1600 / 1 1/2
200	2000 / 2

Code	Kg / ton
320	3200 / 3
400	4000 / 4
500	5000 / 5

11,12

ISO duty

ISO	ASME
M4	H3
M5	H4
M6

13-15

2SP

Hoist control (HS01)

1SP	Single speed
2SP	Two-speed
INV	Inverter

16-18

080

Height of lift

meters

080

8 meters

Suspension

Code
N
L
S
F

Description of code
Normal trolley
Low headroom trolley
Swiveling trolley
Top hook or lug

20-22

120

Flange width (mm)

23-25

466

Power supply

Code
235
385
405

50 Hz supply
230V
380V
400V

Code	60 Hz supply
206	208V
236	230V
466	460V
576	575V

Electrics

Code
C
E

Description of code
CSA
IEC

Control voltage

Code
A
B
C

Description of code
48
115
230

28, 29

Traveling speed

Code
20

fpm – 60 Hz
65 fpm

m/min – 60 Hz
20 m/min

8.3 LR Electric Chain Hoist

LR	10	empty	08	02	200	5	N	120	466	C	B	006
1,2	3,4	5	6,7	8,9	10-12	13	14	15-17	18-20	21	22	23-25

Position

Code

Feature

Available Properties

1,2

Brand

LR electric chain hoist

NECH-M

3,4

Body size (GE09)

Code	Available chain fall
02	1-fall
05	1-fall
10	1-fall or 2-fall

GE09 value
NM02
NM05
NM10

space

Empty space

6,7

Hoist speed (SPD03)

Code
02
04
08
16

fpm – 60 Hz
8 fpm
16 fpm
32 fpm
64 fpm

m/min – 60 Hz
2.4 m/min
4.8 m/min
9.6 m/min
19.2 m/min

m/min – 50 Hz
2 m/min
4 m/min
8 m/min
16 m/min

8,9

Chain fall (DES27)

Code
01
02

Description
1-fall
2-fall

10,11,12

200

Capacity (LOA01)

Code	Kg / ton
012	125 / 1/8
025	250 / ¼
050	500 / 1/2

Code	Kg / ton
100	1000 / 1
160	1600 / 1 1/2
200	2000 / 2

Code	Kg / ton
320	3200 / 3
400	4000 / 4
500	5000 / 5

Hoist duty class

Code
4
5
6

ISO
M4
M5
M6

ASME
H3
H4
H4+

Suspension

Code
N
L
F
S
Q
Y

Description of code
Normal trolley
Low headroom trolley
Fixed hoist (no trolley)
Swiveling trolley
Hand chain trolley
Push trolley

15,16,17

120

Flange width (mm)

18,19,20

466

Power supply voltage

Code	50 Hz supply
235	230V
385	380V
405	400V

Code	60 Hz supply
206	208V
236	230V
466	460V
576	575V

Electric norm

Code
C
E

Description of code
CSA
IEC

Control voltage

Code
A
B
C

Description of code
48
115
230

23,24,25

060

Height of lift

meters

Code
006
008

Height of lift
6 meters
8 meters
